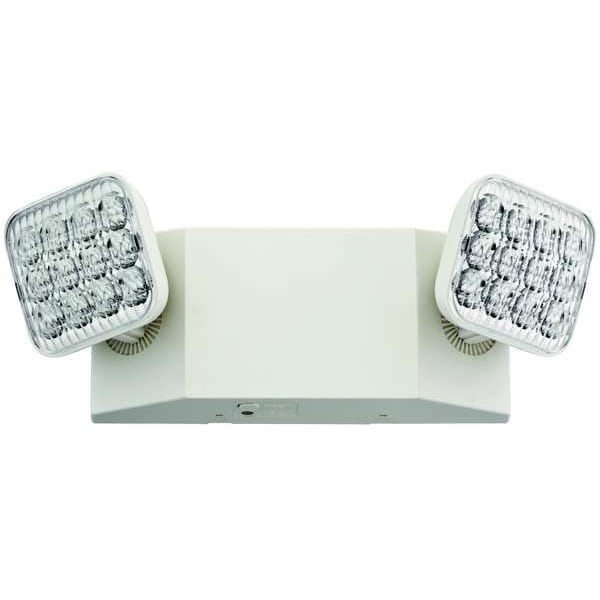

LED Emergency Light, Dual Lamp Head, Damp Location, UL Listed, White Housing

  • Mfr # EU2C LED

  • Zoro # G4312926


product price: $24.75
/ea

Key Features

Lighting Technology
LED
Housing Material
Plastic
Housing Color
White
Includes
Ready/Charge Lamp
IP Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EU2C LED
Zoro #
G4312926
UPC #
191848037188
Country of Origin
China

Dimensions

Length
10 in
Width
2 1/4 in
Height
4 1/4 in
Overall Width
2 1/4 in
Manufacturers Warranty Length
5 yr
Overall Height
4 1/4 in
Overall Length
10 in
Recommended Mounting Height
7 1/2 ft

Details

Item
Emergency Light
Lighting Technology
LED
Housing Material
Plastic
Housing Color
White
Includes
Ready/Charge Lamp
IP Rating
Not Rated
Mounting
Wall
Standards
UL 924, NFPA 101, NFPA 70-NEC, California Energy Commission Title 20 Section 1605.3 (W)(4), FCC and OSHA Illumination Standards.
Optional Guard
4YFV2
Emergency Illumination Time - Emergency Lighting and Exit Signs
90 min
Item - Emergency Lighting and Exit Signs
Emergency Light
Optional Remote Head
487V44, 487V45
Battery Chemistry
Nickel Cadmium
Operating Temp. Range
50 Degrees to104 Degrees F
Head Lamps Adjustable
Yes
Voltage - Emergency Lighting and Exit Signs
120/277
Warranty
5 yr
Housing Material - Emergency Lighting and Exit Signs
Plastic
Number of Lamp Heads
2
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Watts @ 90 Minutes
3.6 W
Bulb Technology
LED
Battery Type
Nickel Cadmium
Lamp Watts - Emergency Lighting and Exit Signs
1.8 W
Lamp Watts
1.8
Output Voltage
3.6 V DC
Lamp Type
Led
Housing Color - Emergency Lighting and Exit Signs
White
Input Voltage
120/277V AC
Emergency Illumination Time
90 min
Features
Flame-Rated
Diagnostic Testing Function
Test Button
Series
EU2C
Lamp Wattage
1 W
Compatible Guard
4YFV2
Adjustable Lamp Heads
Yes
Compliance Type
None
Environmental Rating
Damp Location Rated
Emergency Battery Backup
Yes
Self Diagnostics
No
CA Title 20 Compliant
Yes
Lamp Output
90 lm
Number of Bulbs
2
Housing Finish
Matte
Lamp Color Temperature
5000K
Battery Voltage
3.6 V DC
Current
0.08 A
Minimum Operating Temperature
50 Degrees F
Lamp Head Shape
Square
Maximum Operating Temperature
104 Degrees F
Bulb Included
Yes
Remote Capable
No
NEMA Rating
Not Rated
Emergency Wattage
2 W
Recommended Single Fixture Spacing
6 ft

Description

Emergency Light, Voltage - Emergency Lighting and Exit Signs 120/277, Lamp Watts - Emergency Lighting and Exit Signs 1 W, Lighting Technology LED, Housing Material - Emergency Lighting and Exit Signs Plastic, Housing Color - Emergency Lighting and Exit Signs White, Battery Chemistry Nickel Cadmium, Number of Lamp Heads 2, Emergency Illumination Time - Emergency Lighting and Exit Signs 90 min, Watts @ 90 Minutes 2 W, Output Voltage 3.6 V DC, Width 2 1/4 in, Length 10 in, Height 4 1/4 in

Restrictions

Hazardous material
