Lithonia Lighting

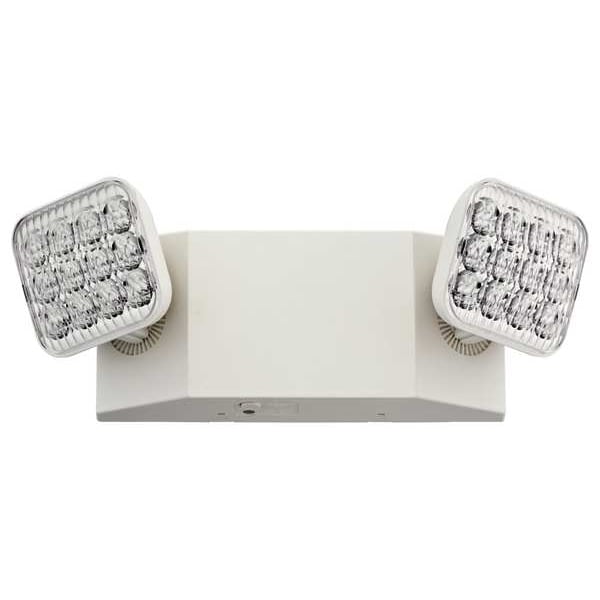

LED Emergency Light

original price: $88.55
21% off
new price: $69.85
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Input Voltage 120V AC, 347V AC
  • Output Voltage 3.6 V
  • Lighting Technology LED
  • Housing Material Plastic
  • Battery Chemistry Nickel Cadmium
See all product information

Product Information

Dimensions

Recommended Mounting Height 7 1/2 ft
Overall Height 3 3/4 in
Overall Width 3 3/4 in
Overall Length 14 3/4 in
Manufacturers Warranty Length 2 yr

Details

Item LED Emergency Light
Input Voltage 120V AC, 347V AC
Output Voltage 3.6 V
Lighting Technology LED
Housing Material Plastic
Battery Chemistry Nickel Cadmium
Number of Lamp Heads 2
Number of Bulbs 2
Housing Color White
Emergency Illumination Time 90 min
Standards cULus, NFPA 101, NFPA 70
Includes Status Indicator
Features Flame-Retardant, High Impact Housing, Injection-Molded
Fixture Wattage 0.81 W, 1 W, 3 W
Series EU2C
Emergency Battery Backup Yes
Housing Finish Textured
IP Rating Not Rated
Compatible Remote Head 487V46, 784H15, 784H17, 784H18, 784H19
Maximum Operating Temperature 104 Degrees F
Emergency Wattage 2 W
Compliance Type Chicago Approved
Environmental Rating Damp Location Rated
CA Title 20 Compliant Yes
Self Diagnostics No
Recommended Single Fixture Spacing 11 ft
NEMA Rating Not Rated
Adjustable Lamp Heads Yes
Battery Voltage 3.6 V
Remote Capacity 3 W
Lamp Wattage 1 W
Bulb Included Yes
Lamp Color Temperature 5000K
Remote Capable Yes
Lamp Head Shape Square
Minimum Operating Temperature 50 Degrees F
Lamp Output 90 lm
Diagnostic Testing Function Test Button
Compatible Guard 4YFV2
Current 0.12 A
Battery Recharge Time 24 hr
Lamp Head Location Sides

Description

LED Emergency Light, Lighting Technology LED, Battery Chemistry Nickel Cadmium, Number of Lamp Heads 2, Output Voltage 3.6 V, Features Flame-Retardant, High Impact Housing, Injection-Molded
