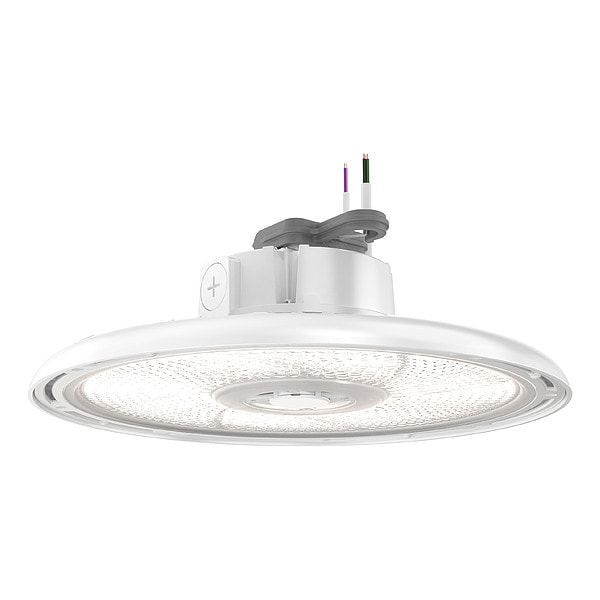

Lithonia Lighting LED High Bay, White, REBL, 14 5/8 in W REBL ALO16 XVOLT SWW3 80CRI DWH M2 - main

LED High Bay, White, REBL, 14 5/8 in W

  • Mfr # REBL ALO16 XVOLT SWW3 80CRI DWH M2

  • Zoro # G114841572

product price:  $294.99
/ea
Free Shipping & Returns

Key Features

Suggested Fixture Mounting Height
20 to 35 ft
Lumens
30,000 lm
Light Distribution
General
Color Temperature
3500K, 4000K, 5000K
Standards
C-UL listed to Canadian Safety Standards, IP65, NEMA 4X, NSF Splash Zone 2 Rated, UL Listed to US Safety Standards, Wet Location Listed
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
REBL ALO16 XVOLT SWW3 80CRI DWH M2
Zoro #
G114841572
UPC #
197590119554
Country of Origin
Viet Nam

Dimensions

Suggested Fixture Mounting Height
20 to 35 ft
Suggested Fixture Mounting Height Range
20 to 40 ft.
Overall Width
14 5/8 in
Overall Height
7 1/2 in
Suggested Mounting Height - Minimum
20 ft
Suggested Mounting Height - Maximum
35 ft
Nominal Length
15 in

Details

Lumens
30,000 lm
Light Distribution
General
Color Temperature
3500K, 4000K, 5000K
Standards
C-UL listed to Canadian Safety Standards, IP65, NEMA 4X, NSF Splash Zone 2 Rated, UL Listed to US Safety Standards, Wet Location Listed
Max. Fixture Wattage
200 W
Series
REBL
Power Source
Hardwired
Bay Light Type
High Bay
Voltage
277 to 480V AC
Emergency Battery Backup
No
Item
LED High Bay
Housing Color
White
For Bulb Shape
Round
Lamp Type
Integrated LED
Min. Ambient Temp.
-40 Degrees F
Max. Ambient Temp.
131 Degrees F
Ambient Temp. Range
-40 to 131 Degrees F
Bulbs Included
Integrated
Lumens per Watt
169 lm/W
CA Title 24 Compliant
Yes
Ambient Temperature - Minimum
-40 Degrees C
Product Type
Round High Bay
LED Replacement For
(6) lamp T5HO, 400W MH
Mounting Style
Ceiling, Suspended
Lens Material
Polycarbonate
Dimmable
Yes
Lumen Selectable
Selectable
For Bulb Type
Integrated LED
Lighting Technology
LED
Light Output
24,000 lm, 27,000 lm, 30,000 lm
Color Selectable
Selectable
IP Rating
IP66
Maximum Fixture Wattage
200 W
Number of Bulbs
0
Ambient Temperature - Maximum
55 Degrees C

Description

LED High Bay, White, REBL, 14 5/8 in W
