Shop LITHONIA LIGHTING

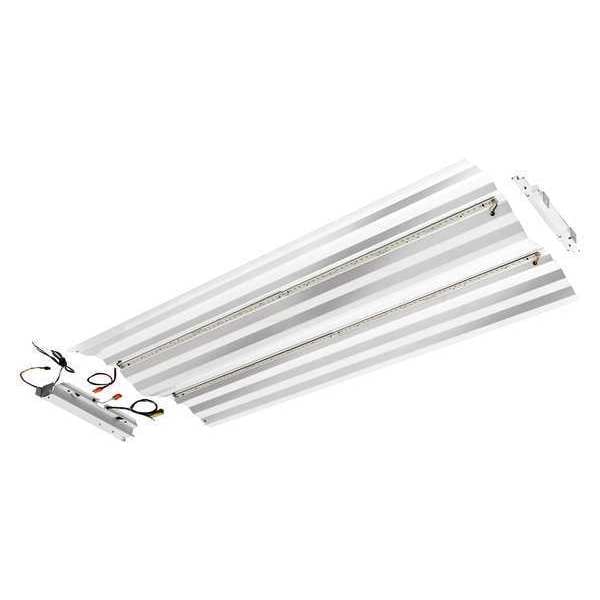

LED Troffer Kit, 3500K, 4278 lm, 38.6W

  • Mfr # 2GTL4R 40L EZ1 LP835

  • Zoro # G9510837

product price:  $151.99
/ea
Free Shipping & Returns

Key Features

Fixture Item
Troffer Fixture Retrofit Kit
Nominal Size - Fixtures
2 ft x 4 ft
Lighting Technology
LED
Voltage
120/277V AC
Watts
38.6
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2GTL4R 40L EZ1 LP835
Zoro #
G9510837
UPC #
-
Country of Origin
Mexico

Dimensions

Nominal Size - Fixtures
2 ft x 4 ft
Fixture Length
48 in
Fixture Height
3 3/4 in
Fixture Width
22 1/2 in
Overall Height
3 3/4 in
Overall Width
22 1/2 in
Overall Length
48 in
Nominal Size
2 ft x 4 ft
Nominal Length
4 ft
Nominal Width
2 ft
Wire Rope Length
48 in

Details

Fixture Item
Troffer Fixture Retrofit Kit
Item
LED Troffer Retrofit Kit
Lighting Technology
LED
Voltage
120/277V AC
Watts
38.6
Lighting Certification
DesignLights Consortium (DLC)
Dimmable
Yes
Lumens
4,278 lm
Color Temperature
3500K
Color Rendering Index
82
Max. Fixture Wattage
38.6 W
Color Temp.
3500K
Fixture Temp. Range
0 Degrees to 75 Degrees F
Lumens Per Watt
111.0
CRI
82
Bulb Technology
LED
Fixture Warranty
5 yr
LED Replacement For
4 Lamp T8
Standards
cULus Listed
Fixtures Per Kit
1
Fixture Voltage
120 to 277
Green Certification or Other Recognition
DesignLights Consortium (DLC)(R) Listed
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Kit Contents
LED Driver, LED Board, Reflector and Bracket
For Use With
Fluorescent Troffers and Parabolics
Lens Type
Diffuser Lens
Fixtures per Kit
1
Lumens per Watt
111 lm/W
For Bulb Type
Integrated LED
Series
2GTL4R
Light Technology
LED
Dimming Range
100% to 1%
Emergency Battery Backup
No
Min. Ambient Temp.
0 Degrees F
Max. Ambient Temp.
75 Degrees F
Sensor Type
No Sensor
Light Output
4,278 lm
Ambient Temperature - Minimum
0 Degrees F
Ambient Temperature - Maximum
75 Degrees F

Description

LED Troffer Retrofit Kit, Lumens 4,278 lm, Lumens Range 4,000 to 5,999 lm, Light Technology LED, 120/277V AC, Lighting Certification DesignLights Consortium (DLC), Dimmable Yes, Emergency Battery Backup No, For Bulb Type Integrated LED, Overall Height 3 3/4 in, Overall Length 48 in, Overall Width 22 1/2 in, Color Rendering Index 82, Color Temperature 3500K, Dimming Range 100 Percent to 1 Percent, Kit Contents LED Driver, LED Board, Reflector and Bracket, LED Replacement For 4 Lamp T8
