Shop LITETRONICS

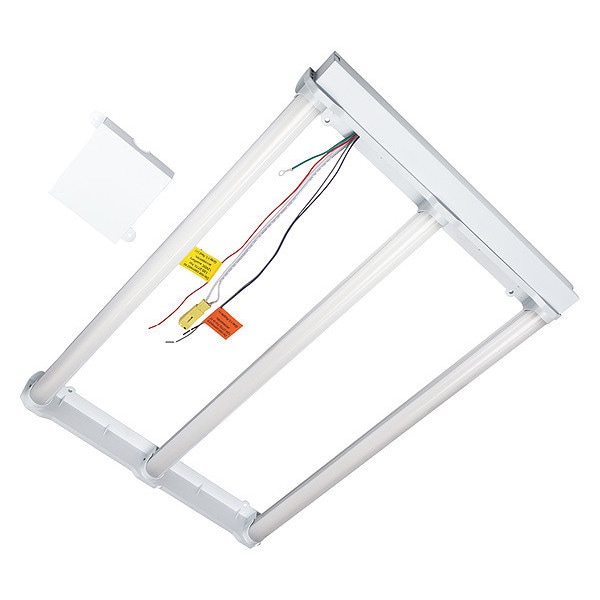

LEDMgnticRtroftKit, 2ftL, 1ftW, 120/277VAC

  • Mfr # RFM3T235A

  • Zoro # G7527473

product price:  $80.25
/ea

Key Features

Fixture Item
Troffer Fixture Retrofit Kit
Lamp Quantity
3
Nominal Size - Fixtures
2 ft x 2 ft
Lighting Technology
LED
Voltage
120/277V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
RFM3T235A
Zoro #
G7527473
UPC #
706762764708
Country of Origin
China

Dimensions

Nominal Size - Fixtures
2 ft x 2 ft
Fixture Length
21 in
Fixture Width
14 7/8 in
Nominal Width
1 ft
Fixture Height
1 7/8 in
Nominal Length
2 ft
Overall Width
14 7/8 in
Overall Height
1 7/8 in
Overall Length
21 in
Nominal Size
2 ft x 2 ft

Details

Fixture Item
Troffer Fixture Retrofit Kit
Item
LED Magnetic Retrofit Kit
Lamp Quantity
3
Lighting Technology
LED
Voltage
120/277V AC
Lighting Certification
DesignLights Consortium (DLC)
Dimmable
Yes
Lumens
3,140 lm, 3,925 lm, 4,700 lm
Color Temperature
3500K
Color Rendering Index
82
Max. Fixture Wattage
30 W
Fixture Voltage
120 to 277
Fixture Warranty
10 yr
LED Replacement For
T8 U-Bend
For Use With
Existing Linear Fluorescent Luminaires
Kit Contents
8 Self Tapping Screws, Installation Instructions, LED Magnetic Retrofit Kit, Magnetic Junction Box, UL1598C Certification Label
Emergency Battery Backup
No
Fixture Temp. Range
-17 Degrees to 35 Degrees C
Standards
cULus Listed
Lumens per Watt
156 lm/W
Fixtures per Kit
1
For Bulb Type
Integrated LED
Dimming Method
0-10V
Max. Ambient Temp.
95 Degrees F
Light Technology
LED
Min. Ambient Temp.
1 Degrees F
Sensor Type
No Sensor
Ambient Temperature - Maximum
95 Degrees F
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Light Output
3,140 lm, 3,925 lm, 4,700 lm
Ambient Temperature - Minimum
1 Degrees F
Green Certification or Other Recognition
DesignLights Consortium (DLC)(R) Premium Listed

Description

LED Magnetic Retrofit Kit, Lumens 3,140 lm, 3,925 lm, 4,700 lm, Lumens Range 4,000 to 5,999 lm, Light Technology LED, 120/277V AC, Lighting Certification DesignLights Consortium (DLC), Dimmable Yes, Emergency Battery Backup No, For Bulb Type Integrated LED, Overall Height 1 7/8 in, Overall Length 21 in, Overall Width 14 7/8 in, Color Rendering Index 82, Color Temperature 3500K, Dimming Method 0-10V
