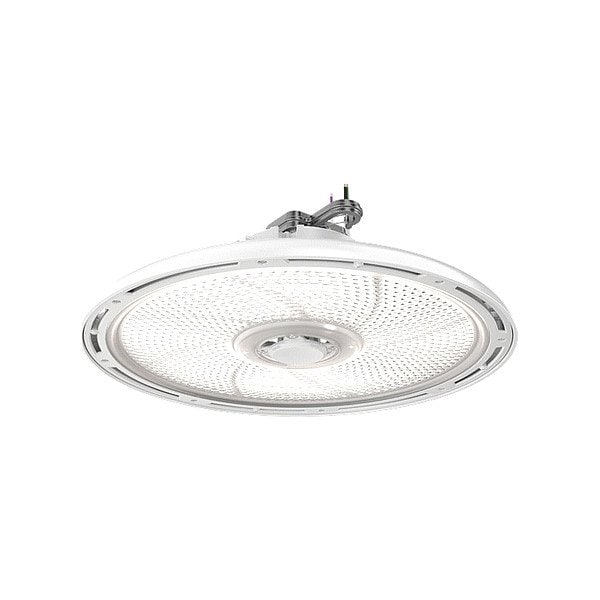

Lithonia Lighting LEDRoundHighBay, White, REBL, 123/16inW REBL ALO13 UVOLT SWW3 80CRI DWH M2 - main

LEDRoundHighBay, White, REBL, 123/16inW

  • Mfr # REBL ALO13 UVOLT SWW3 80CRI DWH M2

  • Zoro # G414841579

product price:  $207.99
/ea
Free Shipping & Returns

Key Features

Suggested Fixture Mounting Height
12 to 25 ft
Lumens
18,000 lm
Light Distribution
General
Color Temperature
3500K, 4000K, 5000K
Standards
IK10, IP66, NEMA 4X, NSF SPLASH ZONE 2, UL/C-UL
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
REBL ALO13 UVOLT SWW3 80CRI DWH M2
Zoro #
G414841579
UPC #
197590119349
Country of Origin
China

Dimensions

Suggested Fixture Mounting Height
12 to 25 ft
Suggested Fixture Mounting Height Range
Up to 20 ft.
Overall Height
7 1/2 in
Overall Width
12 3/16 in
Nominal Length
12 in
Suggested Mounting Height - Minimum
12 ft
Suggested Mounting Height - Maximum
25 ft

Details

Lumens
18,000 lm
Light Distribution
General
Color Temperature
3500K, 4000K, 5000K
Standards
IK10, IP66, NEMA 4X, NSF SPLASH ZONE 2, UL/C-UL
Max. Fixture Wattage
120 W
LED Replacement For
(4) lamp T5HO, (6) lamp T8 HBF, 250W MH
Bulbs Included
Integrated
Min. Ambient Temp.
-4 Degrees F
Housing Color
White
Series
REBL
Max. Ambient Temp.
131 Degrees F
Emergency Battery Backup
No
Voltage
120 to 347V AC
Ambient Temp. Range
-4 to 131 Degrees F
Bay Light Type
High Bay
Lamp Type
Intregated LED
Lumens per Watt
163 lm/W
Item
LED Round High Bay
Maximum Fixture Wattage
120 W
Lumen Selectable
Selectable
Dimmable
Yes
IP Rating
IP66
Number of Bulbs
0
Lighting Technology
LED
Product Type
REBL Round High Bay
Color Selectable
Selectable
Mounting Style
Ceiling, Suspended
Lens Material
Polycarbonate
For Bulb Type
Integrated LED
Ambient Temperature - Maximum
131 Degrees F
Light Output
12,000 lm, 15,000 lm, 18,000 lm
Ambient Temperature - Minimum
-4 Degrees F

Description

LEDRoundHighBay,White,REBL,123/16inW
