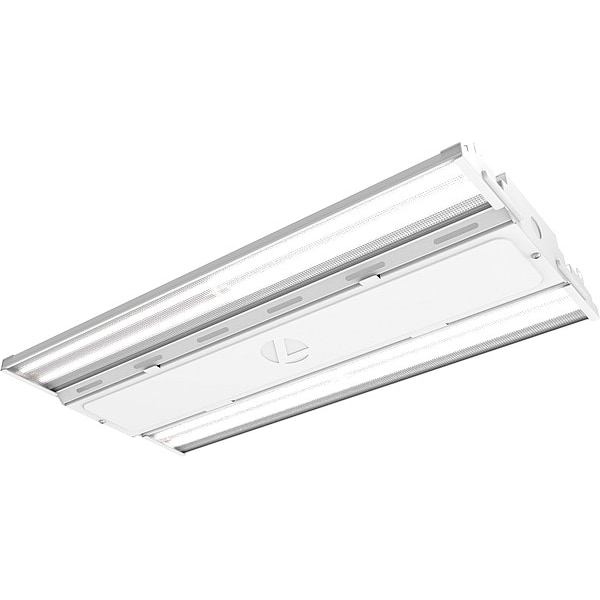

Lithonia Lighting LEDHghBay, White, CPHB, 2213/16inL, 111/2inW CPHB ALO16 MVOLT SWW9 80CRI DWH - main

LEDHghBay, White, CPHB, 2213/16inL, 111/2inW

  • Mfr # CPHB ALO16 MVOLT SWW9 80CRI DWH

  • Zoro # G808396845

product price:  $224.99
/ea
Free Shipping & Returns

Key Features

Suggested Fixture Mounting Height
25 to 35 ft
Lighting Technology
LED
Lumens
30,000 lm
Light Distribution
General
Color Temperature
3500K, 4000K, 5000K
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
CPHB ALO16 MVOLT SWW9 80CRI DWH
Zoro #
G808396845
UPC #
00196183428578
Country of Origin
China

Dimensions

Suggested Fixture Mounting Height
25 to 35 ft
Overall Height
2 5/16 in
Overall Length
22 13/16 in
Overall Width
11 1/2 in
Suggested Mounting Height - Maximum
35 ft
Nominal Length
22 13/16 in
Suggested Mounting Height - Minimum
25 ft

Details

Lighting Technology
LED
Lumens
30,000 lm
Light Distribution
General
Color Temperature
3500K, 4000K, 5000K
Standards
CSA
Max. Fixture Wattage
428 W
LED Replacement For
400W-575W MH, 6-lamp T5HO, 10-lamp T8 HBF
For Bulb Base Type
Medium
Lens Material
Acrylic
For Bulb Shape
Rectangular
Max. Ambient Temp.
131 Degrees F
Reflector Type
Enclosed
Min. Ambient Temp.
-40 Degrees F
Lighting Certification
DesignLights Consortium (DLC)
For Bulb Type
Integrated LED
Green Certification or Other Recognition
DesignLights Consortium (DLC)(R) Premium Listed
Voltage
120 to 277V AC
Rated Life
100,000 hr
Ballast Start Type
No Ballast Required
Ingress Protection Rating
Not Rated
Dimmable
Yes
Series
CPHB
Number of Bulbs
0
Housing Material
Aluminum
CA Title 24 Compliant
No
Housing Color
White
Lamp Type
Fluorescent
Item
LED High Bay
Lamp Watts - Fixtures
428 W
Includes
Mounting Hardware
Bay Light Type
High Bay
Product Type
LED High Bay Fixture
Emergency Battery Backup
No
Bulbs Included
Integrated
Ambient Temperature - Minimum
-40 Degrees F
Light Output
24,000 lm, 27,000 lm, 30,000 lm
Color Selectable
Selectable
Mounting Style
Ceiling, Suspended
Lumen Selectable
Selectable
Ambient Temperature - Maximum
131 Degrees F
Maximum Fixture Wattage
428 W

Description

LED High Bay
