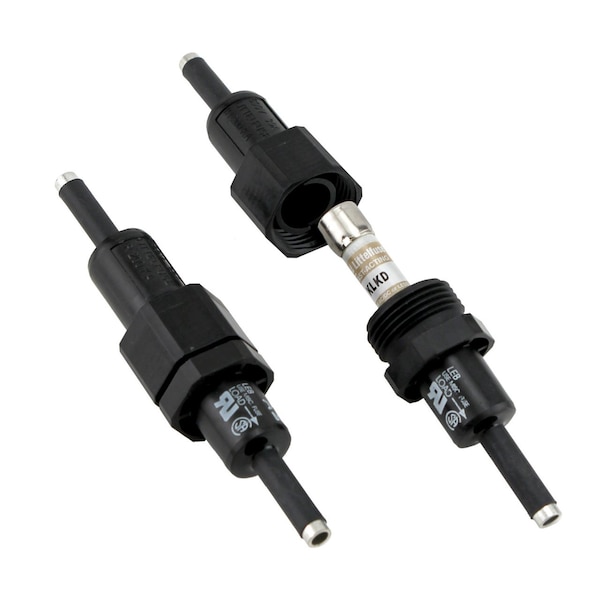

In-Line Fuse Holder, 1 Poles, 30 A Amp Range, 600V AC/DC Volt Rating
Mfr # LECAA
Zoro # G114845471
product price: $18.69
/eaSold in multiples of 10 for $186.90
Key Features
Number of Poles
1
Amp Range
30 A
Voltage Rating
600V AC/DC
Connector Type
Crimp
Mounting Style
Inline
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
LECAA
Zoro #
G114845471
UPC #
079458008111
Country of Origin
Mexico
Dimensions
Body Length
9.3 in
For Fuse Size
4 1/2 in
Overall Length
9.3 in
For Fuse Diameter
10.31 mm
For Fuse Length
38.1 mm
Details
Item
In-Line Fuse Holder
Number of Poles
1
Amp Range
30 A
Voltage Rating
600V AC/DC
Connector Type
Crimp
Mounting Style
Inline
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Fuse Block Design
Non-Breakaway
Body Material
Fiberglass Reinforced Thermoplastic
Fuse UL Class
CC
Fits Fuse Type
Class CC
Features
Fiberglass-Reinforced Polymer Body, Ultrasonically-Welded Terminals, Watertight Seal
Standards
PB-Free, REACH, RoHS (2015/ 863/EU)
Current - Minimum
30 A
Current - Maximum
30 A
AC Voltage Rating
600 V AC
DC Voltage Rating
600 V DC
Description
In-Line Fuse Holder, Fits Fuse Type Class CC, Fuse UL Class CC, 30 A, Number of Poles 1, 600V AC/DC, For Fuse Size 4 1/2 in, Compatible Fuse Series CCMR, KLDR, KLKR (Class CC), Non-Indicating, Non-Rejection, Fuse Block Design Non-Breakaway, Mounting Style Inline, Body Material Fiberglass Reinforced Thermoplastic, Connector Type Crimp, Body Length 9.3 in, Features Fiberglass-Reinforced Polymer Body, Ultrasonically-Welded Terminals, Watertight Seal, Standards PB-Free, REACH, RoHS (2015/ 863/EU)
