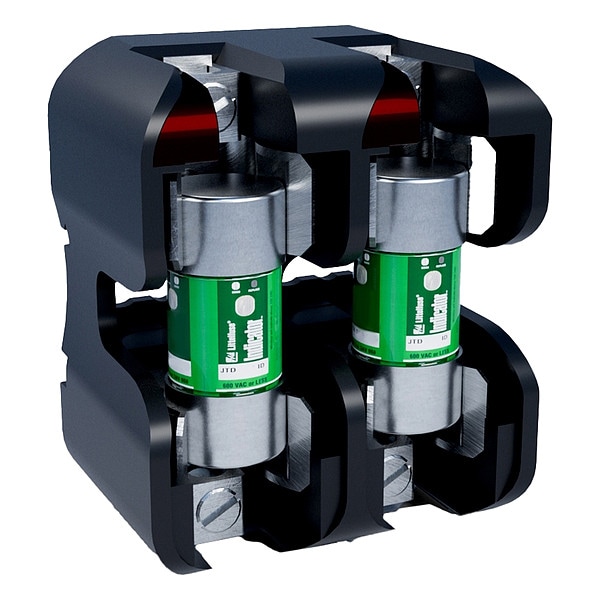

Open Fuse Block, 31 to 60A Amp Range, 600V AC/DC Volt Rating, 2 Poles, Box Lug
Mfr # LFJ600602CID
Zoro # G7611310
product price:Â
$
52.89
/ea
Key Features
UL Class
J
Series
LFJ
Number of Poles
2
Amp Range
31 to 60A
Voltage Rating
600V AC/DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LFJ600602CID
- Zoro #
- G7611310
- UPC #
- 079458181869
- Country of Origin
- China
- Item
- Open Fuse Block
- UL Class
- J
- Series
- LFJ
- Number of Poles
- 2
- Amp Range
- 31 to 60A
- Voltage Rating
- 600V AC/DC
- Connector Type
- Box Lug
- Mounting Style
- Bolt-Down; DIN Rail
- Visual Indication
- Indicating
- Fuse Block Style
- Non-Rejection
- Spring Reinforced Clip
- Yes
- Fuse Block Design
- Open
- Body Material
- Thermoplastic
- Features
- Phenolic Blocks Have Side Barriers for Isolation
- Standards
- CSA Certified, REACH, RoHS, UL Listed
- Wire Range
- 14 AWG to 6 AWG, 4 AWG to 2 AWG
- Fuse Type
- Class J
- Fits Fuse Type
- Class J
- Fits Fuse Block Style
- Non-Rejection
- DC Voltage Rating
- 600 V DC
- Current - Maximum
- 60 A
- AC Voltage Rating
- 600 V AC
Description
Fuse Block, Fits Fuse Type Class J, Fuse UL Class J, 31 to 60 A, Number of Poles 2, 600V AC/DC, Compatible Fuse Series JTD, JTD-ID, Series LFJ, Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 14 to 2 AWG (Cu), 14 to 2 AWG (Al), Mounting Style Bolt-Down, DIN Rail, Body Material Thermoplastic, Connector Type Box Lug, Height 3.83 in, Width 2.24 in, Length 3.20 in, Spring Reinforced Clip Yes, Features Phenolic Blocks Have Side Barriers for Isolation
