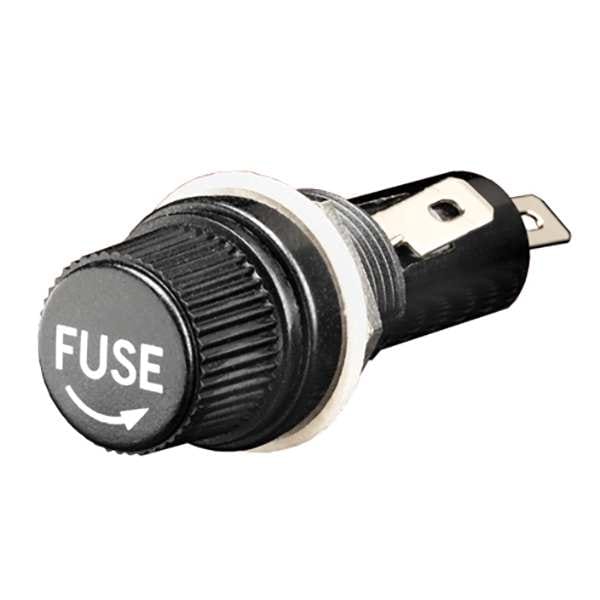

Fuse Holder, 0 to 10A Amp Range, 250V AC/DC Volt Rating, 1 Poles, Quick Connect
- Mfr # GPM-G1
- Zoro # G0907250
CAD Available
product price:Â
$
7.89
/ea
Key Features
CAD Drawing
Series
GPM
Number of Poles
1
Amp Range
0 to 10A
Voltage Rating
250V AC
Connector Type
Quick Connect
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- GPM-G1
- Zoro #
- G0907250
- UPC #
- -
- Country of Origin
- Japan
- CAD Available
- Yes
- Item
- Fuse Holder
- Series
- GPM
- Number of Poles
- 1
- Amp Range
- 0 to 10A
- Voltage Rating
- 250V AC
- Connector Type
- Quick Connect
- Mounting Style
- Panel
- Visual Indication
- Non-Indicating
- Fuse Block Style
- Non-Rejection
- Body Material
- PBT
- Fuse UL Class
- Not Class Rated
- Standards
- CSA, UR
- Fuse Cap Style
- Fingergrip Screw In
- Fits Fuse Type
- Glass and Ceramic
- For Fuse Class
- Not Class Rated
- Max. Amps
- 10A
- Fits Fuse Block Style
- Non-Rejection
- Max. Voltage
- 250V AC/DC
- Mounting Hole
- 19/32 in x 35/64 in
- AC Voltage Rating
- 250 V AC
- Current - Maximum
- 10 A
Dimensions
- For Fuse Size
- 1-1/4 in L x 1/4 in dia
- Length
- 1.77 in
- Diameter
- 0.67 in
- Mounting Hole Dia.
- 35/64 in
- Overall Length
- 1.77 in
- For Fuse Length
- 1 5/16 in
- Overall Diameter
- 0.67 in
- For Fuse Diameter
- 13/32 in
- Wire Rope Length
- 1.77 in
Description
Panel Mount Fuse Holder, Fits Fuse Type Ceramic, Glass, Fuse UL Class Not Class Rated, 0 to 10 A, Number of Poles 1, 250V AC, For Fuse Size 1-1/4 in L x 1/4 in dia, Compatible Fuse Series 311, 312, 313, 314, 315, 322, 326, 3AG, ABC, ACG, GAB, GBB, GDL, GDV, GGC, GSA, MDA, MDL, MDQ, MDV, MDX, MMB, Non-Indicating, Non-Rejection, Fuse Cap Style Fingergrip Screw In, Mounting Style Panel, Mounting Hole 19/32 in x 35/64 in, Body Material PBT, Connector Type 3/16 in Solder, Diameter 0.67 in
