  9. 1/2 gal., 1/30 HP, 115V AC Condensate Pump
Little Giant Pump 1/2 gal., 1/30 HP, 115V AC Condensate Pump 554201101 - main

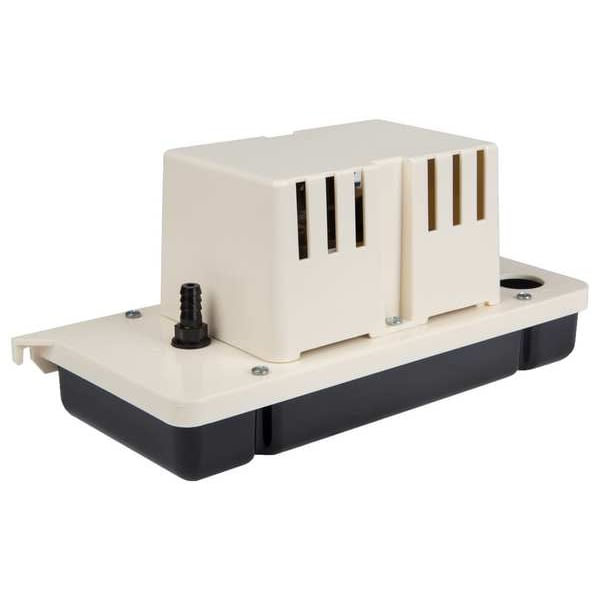

1/2 gal., 1/30 HP, 115V AC Condensate Pump

  • Mfr # 554201101

  • Zoro # G201258955

product price: $93.60
/ea
Free Shipping & Returns

Key Features

Condensate Pumps - Type
Low Profile
Reservoir Size - Pumps
Small
HP - Pumps
1/30 hp
Voltage - Pumps
115 V AC
Reservoir Capacity - Pumps
1/3 gal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
554201101
Zoro #
G201258955
UPC #
029753005780
Country of Origin
China

Dimensions

Reservoir Size - Pumps
Small
Discharge Size - Pumps
3/8 in Barb
Cord Length
6 ft
Length
12 in
Width
5 in
Height
5 9/100 in
Overall Width
5 in
Overall Height
5.09 in
Overall Length
12 in
Compatible Intake Pipe Size
3/4 in
Compatible Discharge Pipe Size
3/8 in
Manufacturer Warranty Length
1 yr
For Discharge Pipe Diameter
3/8 in
For Inlet Pipe Diameter
3/4 in

Details

Condensate Pumps - Type
Low Profile
Item
Condensate Removal Pump
HP - Pumps
1/30 hp
Voltage - Pumps
115 V AC
Reservoir Capacity - Pumps
1/3 gal
Max. Temp - Pumps
120 Degrees F
GPH of Water @ 12 Ft. of Head
50 gph
GPH of Water @ 15 Ft. of Head
25 gph
Amps
1.5 A
GPH of Water @ 30 Ft. of Head
0 gph
Pump Type
Low Profile
Float Material
Polypropylene
GPH of Water @ 40 Ft. of Head
0 gph
Standards
cULus
Includes
1/4" O.D. Barbed Discharge Adapter
Application
Condensate Removal
Max. Head - Pumps
20 ft
Max. Pressure
8.6 psi
GPH of Water @ 5 Ft. of Head
70 gph
Watts
93 W
GPH of Water @ 9 Ft. of Head
50 gph
GPH of Water @ 20 Ft. of Head
0 gph
Tank Material
Plastic
GPH of Water @ 1 Ft. of Head
80 gph
Shaft Material
Stainless Steel
Maximum Operating Pressure
8.6 psi
Horsepower
1/16 hp
Electrical Connection Type
Plug-In
Compatible Media Type
Water
Maximum Flow Rate @ 15 Feet of Head
0.42 gpm
Maximum Flow Rate @ 10 Feet of Head
0.75 gpm
Intake Connection Style
Open
Body Gasket Material
Stainless Steel
Maximum Media Temperature
120 Degrees F
Maximum Flow Rate @ 5 Feet of Head
1.17 gpm
Tank Capacity
7/16 gal
Series
VCCA-20ULS
Plenum Rated
No
Series Family
VCCA
Nameplate Voltage
115V AC
Shut Off Level
0.45 in
Maximum Ambient Temperature
120 Degrees F
Discharge Connection Style
Barbed
Turn On Level
1.06 in
Phase
Single
Pump Activation Type
Float Switch
For Use With Potable Systems
No
Maximum Flow Rate @ 1 Feet of Head
1.33 gpm
Maximum Feet of Head
20 ft
Full Load Current
1.5 A
Tank Opacity
Solid
Installation
Floor Standing
Feet of Head - Maximum
20 ft
Product Type
Low Profile Condensate Removal Pump
Operating Pressure - Maximum
8.6 psi
Includes Safety Switch
Safety Switch Included
Ambient Temperature - Maximum
120 Degrees F
For HVAC System Duct
Ducted
For Media Type
Clear Water
Priming
Self-Priming
Power Source
Corded Electric
Media Temperature - Minimum
33 Degrees F
Discharge Standard
Barbed
Media Temperature - Maximum
120 Degrees F
Number of Inlets
3
Inlet Standard
Open
Pump Technology
Centrifugal
Includes Tubing
No Tubing Included
Frequency
60 Hz

Description

Condensate Removal Pump, Discharge Connection Style Barbed, Horsepower 1/16 hp, Intake Connection Style Open, Maximum Feet of Head 20 ft, Maximum Flow Rate @ 10 Feet of Head 0.75 gpm, Maximum Flow Rate @ 15 Feet of Head 0.42 gpm, Maximum Flow Rate @ 1 Foot of Head 1.33 gpm, Maximum Flow Rate @ 20 Feet of Head Not Applicable, Maximum Media Temperature 120 Degrees F, Nameplate Voltage 115V AC, Plenum Rated No, Pump Type Low Profile, Series VCCA-20ULS, Series Family VCCA, Shut Off Level 0.45 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
