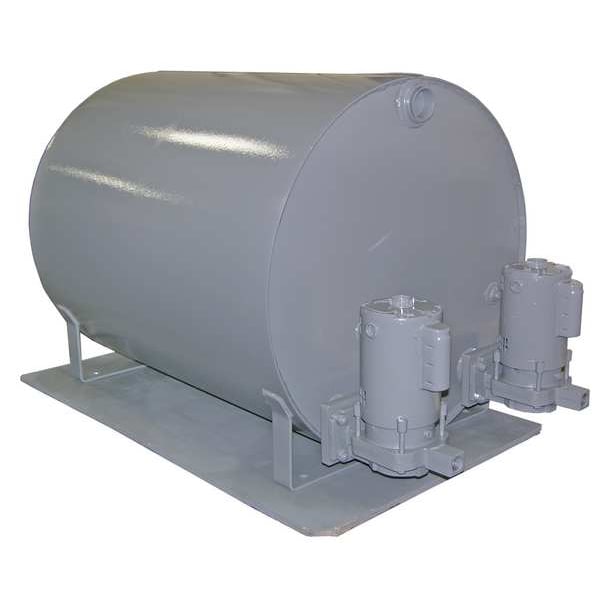

Boiler Feed Pump, 50HP, 50 gal.

  • Mfr # 161052

  • Zoro # G2746597

product price:
$
5,309.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Pump Flow (GPM)
15
Discharge Pressure (PSI)
20
Receiver Size (Gal.)
50
Voltage
115V/230V
Max. Liquid Temp. (F)
210 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
161052
Zoro #
G2746597
UPC #
683328231648
Country of Origin
United States

Dimensions

Receiver Size (Gal.)
50
Length (In.)
39 in
Width (In.)
24 7/16 in
Height (In.)
24 11/16 in
Overflow Port Pipe Size
2 in
Compatible Discharge Pipe Size
3/4 in
Overall Width
24.44 in
Overall Height
24.69 in
Compatible Intake Pipe Size
2 1/2 in
Overall Length
39 in
Vent Line Port Pipe Size
2 in
Drain Port Size
2 in
Vent Line Port Pipe Diameter
2 in
Discharge Diameter
3/4 in
Drain Port Diameter
2 in
Inlet Diameter
2 1/2 in
Overflow Port Pipe Diameter
2 in
Wire Rope Length
39 in
Length
39 in

Details

Pump Flow (GPM)
15
Discharge Pressure (PSI)
20
Voltage
115V/230V
Max. Liquid Temp. (F)
210 Degrees F
Type
Duplex
Number of Pumps
2
Item
Boiler Feed Pump
HP
1/3 hp
Pump Type
Boiler Feed
Phase
Single
Boiler HP
50 hp
EDR Rating
15,000
Hz
60
Includes
Gauge Glass Assembly, Make Up Valve Assembly
NPT Overflow Port (In.)
2 in
Application
Boiler Feed and Condensate Transfer for Residential, Commercial and Industrial Steam Heating and Industrial Recessing, Dry Cleaning Plants, Chemical Refineries, Wood Pulp Processing, Textile Mills and Manufacturing Facilities
Mounting
4 Bolt Flange
NPT Low Return Inlet (In.)
2 1/2 in
NPT Drain Port (In.)
2 in
Tank Material
Steel
Bearings
Permanently Lubricated Ball
RPM
3,500 RPM
Motor Type
Open Drip proof, Single Phase, Capacitor Start
Shaft Material
Threaded Stainless Steel
NPT Vent Line Port (In.)
2 in
Seal Type
John Crane Type 6 Buna N/Carbon/Ceramic Shaft
Maximum Flow Rate @ 30 Feet of Head
33 gpm
Maximum Flow Rate @ 45 Feet of Head
21 gpm
Compatible Media Type
Water
Motor Enclosure Design
Open Drip Proof
Tank Orientation
Horizontal
Standards
UL Listed
Pump Housing Material
Cast Iron
Maximum Flow Rate @ 35 Feet of Head
30 gpm
Body Gasket Material
Carbon/Ceramic
Discharge Connection Style
NPT
Horsepower
1/3 hp
For Use With Potable Systems
No
Series
50HBFD-1520
Frequency
60 Hz
Nameplate Voltage
115/230V AC
Maximum RPM
3,500 RPM
Maximum Feet of Head
46 ft
Maximum Flow Rate @ 40 Feet of Head
26 gpm
Equivalence of Direct Radiation Rating
7,000
Series Family
HBF
Maximum Media Temperature
200 Degrees F
Maximum Flow Rate @ 50 Feet of Head
12 gpm
Tank Capacity
50 gal
Intake Connection Style
NPT
Impeller Material
Bronze
Pump Mounting Position
Vertical
Media Temperature - Maximum
200 Degrees F
Pump System Design
Duplex
Inlet Standard
NPT
Revolutions Per Minute - Maximum
3,500 RPM
Pump Casing Material
Cast Iron
Flow Rate - Maximum
34 gpm
Inlet Gender
Female
Discharge Gender
Female
Feet of Head - Maximum
52 ft
Discharge Pressure
20 psi
Mounting Orientation
Vertical
Discharge Standard
NPT

Description

Boiler Feed Pump, Discharge Connection Style NPT, Equivalence of Direct Radiation Rating 7,000, Horsepower 1/3 hp, Intake Connection Style NPT, Maximum Feet of Head 46 ft, Maximum Flow Rate @ 30 Feet of Head 33 gpm, Maximum Flow Rate @ 40 Feet of Head 26 gpm, Maximum Flow Rate @ 50 Feet of Head 12 gpm, Maximum Media Temperature 200 Degrees F, Pump Mounting Position Vertical, Nameplate Voltage 115/230V AC, Pump Type Boiler Feed, Tank Capacity 50 gal, Maximum Flow Rate @ 35 Feet of Head 30 gpm
