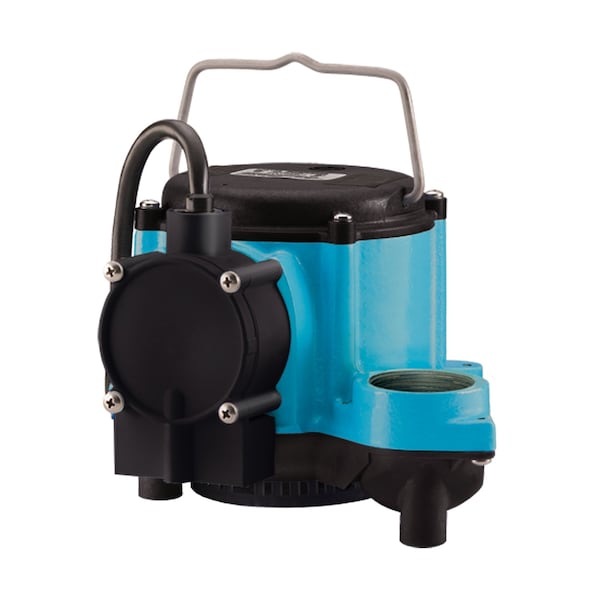

Little Giant Pump 1/3 HP 1-1/2" F Submersible Sump Pump 115 Diaphragm 506160 - main

1/3 HP 1-1/2" F Submersible Sump Pump 115 Diaphragm

  • Mfr # 506160

  • Zoro # G8491664

product price:  $188.99
/ea
Free Shipping & Returns

Key Features

Cord Length
8 ft
Discharge NPT
1-1/2" F
Housing Material
Cast iron
HP
1/3
Hz
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
506160
Zoro #
G8491664
UPC #
010121061606
Country of Origin
Mexico

Dimensions

Cord Length
8 ft
Height
7-1/4"
Diameter
7-1/4"
Max. Diameter Solids
1/8 in
Cord Length - Pumps
8 ft.
Max. Dia. Solids
1/8"
Manufacturers Warranty Length
3 yr
Discharge Dia.
1 1/2 in
Overall Height
6 in
Sump Pit Diameter - Minimum
18 in
Body Diameter
7 1/2 in
Discharge Diameter
1 1/2 in
Width at Widest Point
9 1/2 in
Solids Diameter - Maximum
0 in

Details

Discharge NPT
1-1/2" F
Housing Material
Cast iron
HP
1/3
Hz
60 Hz
Impeller Material
Nylon
Max. Head
18 ft
Max. Temp.
150 Degrees F
Shaft Seal
Carbon/Ceramic, Nitrile, Stainless Steel
Voltage
115
Phase
Single
Switch Type - Pumps
Diaphragm
Impeller Material - Pumps
Nylon
Item
Submersible Sump Pump
Shaft Seal Material - Pumps
Carbon, Ceramic, Nitrile, Stainless Steel
NEC Cord Designation
SJTW
Max. Head - Pumps
18 ft.
Voltage - Pumps
120VAC
Switch Type
Diaphragm
Pump Body Material
Cast Iron
Alarm Included
No
Base Material
Polypropylene
Max. Liquid Temp.
150 Degrees F
Item - Sump Pumps
Submersible Sump Pump
Amps - Pumps
9.00
Amps
9 A
Alarm
No
Gauge/Conductor
18/3
Thermal Protection
Auto
On Point
4 - 7 in
Application
Dewatering, Transfer
Off Point
1 1/2 - 3 1/2 in
Duty Cycle
Continuous
Switch Electrical Connection
Integral
Discharge
1 1/2 in FNPT
Rated Voltage
115V AC
Discharge Standard
NPT
Switch Actuation
Diaphragm
Body Material
Cast Iron
Discharge Gender
Female
Fits Brand
Little Giant
For Use With Mfr. Model Number
WRSC-6
Hazardous Location Class
Not Rated
Shaft Seal Material
Ceramic/Nitrile Rubber
Requires Control Panel
No Control Panel Required
Volute Material
Plastic
Operation
Automatic
For Media Type
Clear Water
Series
6-CIA-ML
For Industry
Residential
Motor Housing Material
Cast Iron
Frequency
60 Hz
Installation
Submersible
Flow Rate @ 10 ft of Head
29 gpm
Horsepower
1/3 hp
Rotation Speed - Maximum
1,500 RPM
Current
9.0 A
Shaft Seal Type
Single Mechanical
Feet of Head - Maximum
18 ft
Includes Alarm
No Alarm Included
Standards
cCSAus
Power Source
Corded Electric
Impeller Design
Non-Clog
Liquid Temperature - Maximum
140 Degrees F

Description

Submersible Sump Pump, HP 1/3, Rated Voltage 115V AC, Hz 60 Hz, Amps 9 A, Switch Actuation Diaphragm, Switch Electrical Connection Integral, Off Point 1 1/2 - 3 1/2 in, On Point 4 - 7 in, Body Material Cast Iron, Impeller Material Nylon, Shaft Seal Material - Pumps Carbon, Ceramic, Nitrile, Stainless Steel, Max. Head 18 ft, Overall Height 6 in, Discharge 1 1/2 in FNPT, Max. Diameter Solids 1/8 in, Max. Liquid Temp. 150 Degrees F, Thermal Protection Auto, Width at Widest Point 9 1/2 in
