This item is Discontinued.

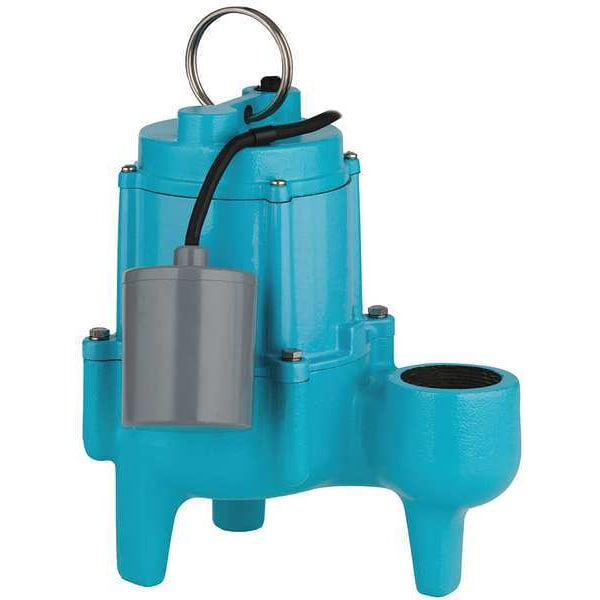

Little Giant Pump 4/10 HP 2" Auto Submersible Sewage Pump 115V Tether 509926

4/10 HP 2" Auto Submersible Sewage Pump 115V Tether (Discontinued)

  • Mfr # 509926
  • Zoro # G1024432
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
509926
Zoro #
G1024432
UPC #
010121140479
Country of Origin
Mexico

Dimensions

Max. Diameter Solids
2 in
Height
11-2/5"
Cord Length
20 ft
Manufacturers Warranty Length
2 yr
Diameter
11-16/25"
Max. Dia. Solids
2"
Cord Length - Pumps
20 ft.
Overall Height
11 2/5 in
Body Dia.
11 16/25 in
Discharge Dia.
2 in, 3 in

Details

HP
4/10
Phase - Pumps
1
Switch Actuation
Tether Float
Body Material
Cast Iron
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
70 gpm
Max. Head
20 ft
Impeller Material
Nylon
Discharge NPT
2"
Bearing Type
Upper Sleeve/Lower Ball
GPM of Water @ 10 Ft. of Head
70
Switch Type
Tether
Max. Liquid Temp.
140 Degrees F
Motor Type
Permanent Split Capacitor
Phase
1
Thermal Protection
Yes
Pump Body Material
Cast Iron
GPM of Water @ 15 Ft. of Head
30
Pump HP
4/10
Pump Type
Automatic
Shaft Seal Material - Pumps
Carbon, Ceramic
Housing Material
Cast iron
Input Phase AC
1
Amps
9.00 A
GPM of Water @ 5 Ft. of Head
110
Max. Head - Pumps
20 ft.
Switch Type - Pumps
Tether
Voltage - Pumps
120VAC
Impeller Material - Pumps
Nylon
Item - Sewage Pumps
Submersible Sewage Pump
Agency Compliance
CSA Certified
Amps - Pumps
9.00
Shaft Seal
Carbon/Ceramic
Voltage
115
Item
Sewage Ejector Pump
Motor RPM
1750
RPM
1,750 RPM
Rated Voltage
120V AC
Duty Cycle
Continuous
On Point
9 to 14
Discharge Standard
NPT
Switch Electrical Connection
Integral
Discharge Gender
Female
Discharge
2 in FNPT; 3 in FNPT
Off Point
2 to 6
Flow Rate @ 15 Ft. of Head
30 gpm
Type
Automatic

Description

Sewage Ejector Pump, HP 4/10, Rated Voltage 120V AC, Phase - Pumps 1, Amps 9.00 A, Motor Type Permanent Split Capacitor, Body Material Cast Iron, Impeller Material Nylon, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation Tether Float, Switch Electrical Connection Integral, On Point 9 to 14, Off Point 2 to 6, Flow Rate @ 10 Ft. of Head 70 gpm, Flow Rate @ 15 Ft. of Head 30 gpm, Max. Diameter Solids 2 in, Body Dia. 11 16/25 in, Overall Height 11 2/5 in, Cord Length 20 ft
