Shop LITTLE GIANT PUMP

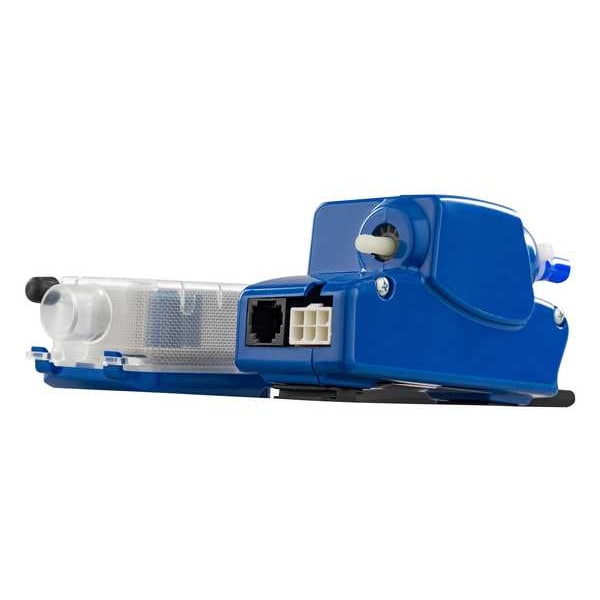

Condensate Pump, 1/100 gal, 1/50 hp

  • Mfr # 553507

  • Zoro # G504105123

product price:  $145.99
/ea
Free Shipping & Returns

Key Features

Cord Length
5 ft
Pump Type
Mini-Split
Includes
Multi-Step Drain Hose Adapter 1/2 in, Multi-Step Drain Hose Adapter 3/4 in, Multi-Step Drain Hose Adapter 5/8 in
Amps
0.18 A
Tank Material
Plastic
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
553507
Zoro #
G504105123
UPC #
-
Country of Origin
Mexico

Dimensions

Cord Length
5 ft
Compatible Intake Pipe Size
3/16 in
Overall Width
1.8 in
Overall Length
4.1 in
Overall Height
2.4 in
Manufacturer Warranty Length
2 yr
Compatible Discharge Pipe Size
1/4 in
For Discharge Pipe Diameter
1/4 in
For Inlet Pipe Diameter
1/2 in, 5/8 in, 3/4 in
For HVAC Heating Energy Size
34,000 BTU
Wire Rope Length
4.1 in

Details

Item
Condensate Removal Pump
Pump Type
Mini-Split
Includes
Multi-Step Drain Hose Adapter 1/2 in, Multi-Step Drain Hose Adapter 3/4 in, Multi-Step Drain Hose Adapter 5/8 in
Amps
0.18 A
Tank Material
Plastic
Standards
cCSAus
Application
Condensate Removal
Maximum Flow Rate @ 10 Feet of Head
1.5 gph
Shut Off Level
0.37 in
Frequency
50/60 Hz
Maximum Flow Rate @ 1 Feet of Head
2.5 gph
Horsepower
1/16 hp
Turn On Level
0.45 in
Tank Capacity
0 gal
Plenum Rated
No
Maximum Flow Rate @ 25 Feet of Head
1.1 gph
Discharge Connection Style
Barbed
Maximum Media Temperature
140 Degrees F
Series Family
EC-1
Maximum Flow Rate @ 30 Feet of Head
1 gph
Maximum Flow Rate @ 5 Feet of Head
1.8 gph
Intake Connection Style
Open
Maximum Flow Rate @ 20 Feet of Head
1.2 gph
Series
EC-1-DV
Maximum Flow Rate @ 15 Feet of Head
1.3 gph
Maximum Feet of Head
33 ft
Nameplate Voltage
110-240V AC
Installation
Pedestal-Mount
Includes Safety Switch
No Safety Switch Included
Power Source
Corded Electric
Media Temperature - Maximum
140 Degrees F
Discharge Standard
Barbed
Tank Opacity
Translucent
Full Load Current
0.18 A
For HVAC System Duct
Ductless
Inlet Standard
Open
Pump Technology
Centrifugal
Feet of Head - Maximum
33 ft
Product Type
Mini-Split Condensate Removal Pump
Includes Tubing
Tubing Included
Media Temperature - Minimum
33 Degrees F
Priming
Self-Priming
For Media Type
Clear Water
Number of Inlets
1
Operating Pressure - Maximum
26 psi
Phase
Single
Pump Activation Type
Electrically Activated
Electrical Connection Type
Hardwired
Power Source - TS Only
Corded Electric

Description

Condensate Removal Pump, Discharge Connection Style Barbed, Horsepower 1/16 hp, Includes Multi-Step Drain Hose Adapter 1/2 in, Multi-Step Drain Hose Adapter 3/4 in, Multi-Step Drain Hose Adapter 5/8 in, Intake Connection Style Open, Maximum Feet of Head 33 ft, Maximum Flow Rate @ 10 Feet of Head 1.5 gph, Maximum Flow Rate @ 15 Feet of Head 1.3 gph, Maximum Flow Rate @ 1 Foot of Head 2.5 gph, Maximum Flow Rate @ 20 Feet of Head 1.2 gph, Maximum Media Temperature 140 Degrees F
