Shop LITTLE GIANT PUMP

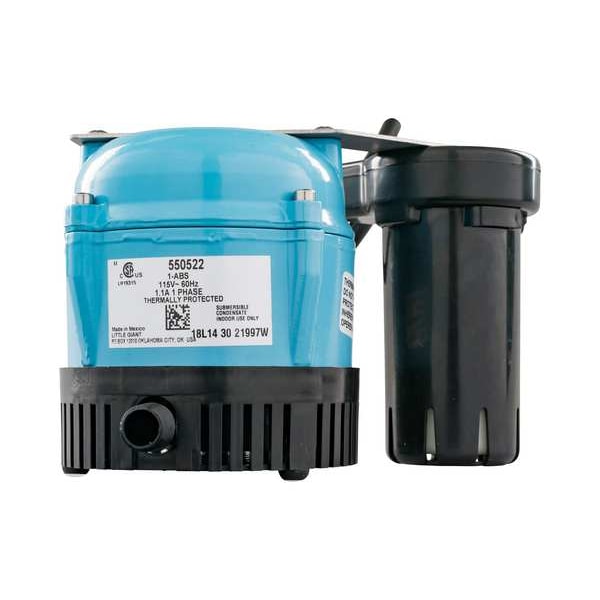

Condensate Pump, 1/2 gal, 1/150 hp, 115V AC

  • Mfr # 550522
  • Zoro # G504105062
product price:
$
165.99
/ea
Free Shipping & Returns

Key Features

Standards
cCSAus
Cord Length
11 ft
Application
Condensate Removal
Amps
1.1 A
Tank Material
Plastic
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
550522
Zoro #
G504105062
UPC #
-
Country of Origin
Mexico

Dimensions

Cord Length
11 ft
Manufacturer Warranty Length
1 yr
Compatible Discharge Pipe Size
1/4 in
Overall Length
6.32 in
Overall Width
6.09 in
Overall Height
4.31 in
For Discharge Pipe Diameter
1/4 in
Wire Rope Length
6.32 in
Length
6.32 in

Details

Item
Condensate Removal Pump
Standards
cCSAus
Application
Condensate Removal
Amps
1.1 A
Tank Material
Plastic
Includes
90 Degrees 1/4 in MNPT Adapter
Pump Type
In-Pan
Maximum Flow Rate @ 10 Feet of Head
0 gpm
Frequency
60 Hz
Horsepower
1/150 hp
Pump Activation Type
Float Switch
Discharge Connection Style
Barbed
Nameplate Voltage
115V AC
Plenum Rated
No
Turn On Level
1.75 in
Intake Connection Style
Screened Submersible
Series Family
ABS
Series
1-ABS
Maximum Feet of Head
10 ft
Pump Housing Material
ABS Plastic
Maximum Flow Rate @ 5 Feet of Head
2.42 gpm
Maximum Operating Pressure
4.3 psi
Maximum Media Temperature
120 Degrees F
Shut Off Level
1.25 in
Tank Capacity
5/8 gal
Maximum Flow Rate @ 1 Feet of Head
3.41 gpm
Priming
Self-Priming
Electrical Connection Type
Plug-In
Pump Technology
Centrifugal
Operating Pressure - Maximum
4.3 psi
Phase
Single
Feet of Head - Maximum
10 ft
Power Source
Corded Electric
Installation
Floor Standing
Discharge Standard
Barbed
Number of Inlets
1
Media Temperature - Minimum
33 Degrees F
Full Load Current
1.1 A
For Media Type
Clear Water
Includes Tubing
No Tubing Included
Pump Casing Material
Plastic
Product Type
In-Pan Condensate Removal Pump
Tank Opacity
Solid
Inlet Standard
Screened Submersible
Includes Safety Switch
No Safety Switch Included
Media Temperature - Maximum
120 Degrees F
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Condensate Removal Pump, Discharge Connection Style Barbed, Horsepower 1/150 hp, Includes 90 Degrees 1/4 in MNPT Adapter, Intake Connection Style Screened Submersible, Maximum Feet of Head 10 ft, Maximum Flow Rate @ 10 Feet of Head 0 gpm, Maximum Flow Rate @ 15 Feet of Head Not Applicable, Maximum Flow Rate @ 1 Foot of Head 3.41 gpm, Maximum Flow Rate @ 20 Feet of Head Not Applicable, Maximum Media Temperature 120 Degrees F, Nameplate Voltage 115V AC, Plenum Rated No, Pump Type In-Pan
