Shop LITTLE GIANT PUMP

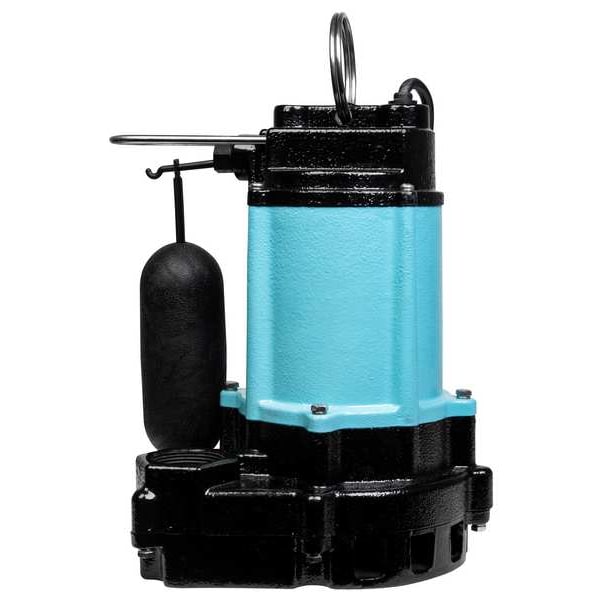

Effluen tPump, 20ft, 9.0A, 0.5hp, 115V AC

  • Mfr # 511623

  • Zoro # G401985170

product price:
$
665.99
/ea
Free Shipping & Returns

Key Features

Phase - Pumps
1
Cord Length
20 ft
HP
1/2
Impeller Material
Thermoplastic Elastomer
Amps
9 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
511623
Zoro #
G401985170
UPC #
0010121003071
Country of Origin
China

Dimensions

Cord Length
20 ft
Max. Diameter Solids
3/4 in
Min. Sump Pit Dia.
18 in
Manufacturers Warranty Length
3 yr
Overall Height
11 1/4 in
Width at Widest Point
10 3/4 in
Discharge Dia.
1 1/2 in
Body Dia.
8 3/8 in
Sump Pit Diameter - Minimum
18 in
Body Diameter
8 3/8 in
Solids Diameter - Maximum
3/4 in
Discharge Diameter
1 1/2 in

Details

Item
Effluent Pump
Phase - Pumps
1
HP
1/2
Impeller Material
Thermoplastic Elastomer
Amps
9 A
Body Material
Cast Iron
Max. Head
60 ft
Switch Actuation
Vertical Float
Max. Liquid Temp.
140 Degrees F
Hz
60 Hz
Thermal Protection
Yes
Phase
Single
Agency Compliance
cCSAus Listed
Shaft Seal Material - Pumps
Carbon, Ceramic, Nitrile Rubber
Flow Rate @ 10 Ft. of Head
55 gpm
Flow Rate @ 20 Ft. of Head
45 gpm
Rated Voltage
115V AC
Flow Rate @ 40 Ft. of Head
15 gpm
Discharge Gender
Female
Alarm Included
No
Discharge Standard
NPT
Duty Cycle
Continuous
Switch Electrical Connection
Integral
Discharge
1 1/2 in FNPT
Series
10ECH-CIA-SFS
Flow Rate @ 10 ft of Head
55 gpm
Flow Rate @ 20 ft of Head
45 gpm
Frequency
60 Hz
Standards
cCSAus Listed
Shaft Seal Type
Single Mechanical
Liquid Temperature - Maximum
140 Degrees F
Shaft Seal Material
Carbon/Ceramic/Nitrile Rubber
Power Source
Corded Electric
Motor Housing Material
Cast Iron
Current
9.0 A
Horsepower
1/2 hp
For Media Type
Effluent Water, Grey Water
Feet of Head - Maximum
60 ft
Volute Material
Cast Iron
Includes Alarm
No Alarm Included
Requires Control Panel
No Control Panel Required
Flow Rate @ 40 ft of Head
15 gpm
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Effluent Pump, HP 1/2, Rated Voltage 115V AC, Hz 60 Hz, Phase - Pumps 1, Amps 9 A, Body Material Cast Iron, Impeller Material Thermoplastic Elastomer, Shaft Seal Material - Pumps Carbon, Ceramic, Nitrile Rubber, Switch Actuation Vertical Float, Switch Electrical Connection Integral, Flow Rate @ 10 Ft. of Head 55 gpm, Flow Rate @ 20 Ft. of Head 45 gpm, Flow Rate @ 40 Ft. of Head 15 gpm, Max. Head 60 ft, Min. Sump Pit Dia. 18 in, Body Dia. 8 3/8 in, Width at Widest Point 10 3/4 in
