Shop LITTLE GIANT PUMP

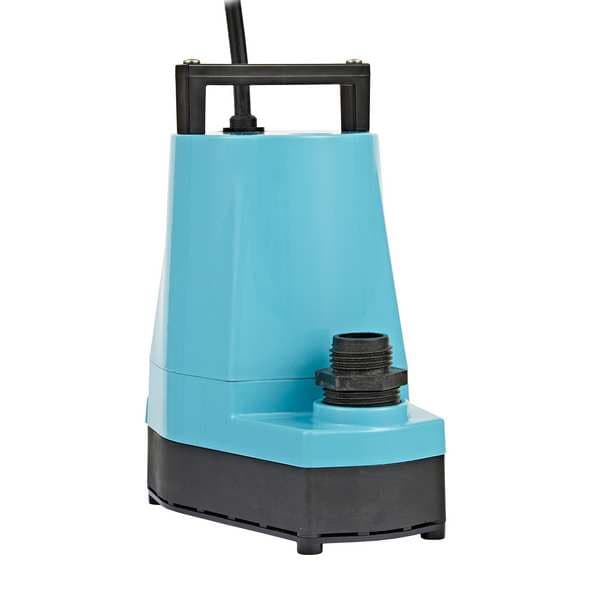

Plug-In Utility Pump, 12ft, 8.125 in H, 230V AC

  • Mfr # 505714

  • Zoro # G101991990

product price:  $224.99
/ea
Free Shipping & Returns

Key Features

Power Source
Corded Electric
HP
1/6
Switch Actuation
No Switch Included
Body Material
Cast Aluminum
Cord Length
12 ft
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
505714
Zoro #
G101991990
UPC #
0029753004622
Country of Origin
China

Dimensions

Cord Length
12 ft
Overall Height
8 1/8 in
Width at Widest Point
6 1/8 in
Manufacturers Warranty Length
1 yr
Discharge Dia.
1 in
Body Diameter
4 3/8 in
Sump Pit Diameter - Minimum
7 in
Solids Diameter - Maximum
1/16 in
Depth Pumped - Minimum
1/16 in
Discharge Internal Diameter
1 in
Operating Water Depth - Minimum
1/2 in

Details

Power Source
Corded Electric
HP
1/6
Switch Actuation
No Switch Included
Body Material
Cast Aluminum
Max. Head
26 ft
Max. Liquid Temp.
120 Degrees F
Series
5-MSP
Flow Rate @ 5 Ft. of Head
23.25 gpm
Hz
60 Hz
Shaft Seal Material - Pumps
Fluoroelastomer
Amps
1 AC A
RPM
3,450 RPM
Agency Compliance
cULus
Duty Cycle
Continuous
Discharge
1 in FNPT
Rated Voltage
230V AC
Discharge Standard
NPT
Impeller Material
Nylon
Flow Rate @ 10 Ft. of Head
19.85 gpm
Item
Plug-In Utility Pump
Includes
3/4 in GHT
Discharge Gender
Female
Phase
Single
Flow Rate @ 20 Ft. of Head
8.8 gpm
Feet of Head - Maximum
26 ft
Horsepower
1/6 hp
Flow Rate @ 10 ft of Head
19.9 gpm
Flow Rate - Maximum
25 gpm
Motor Housing Material
Aluminum
Includes Garden Hose Adapter
Garden Hose Adapter Included
For Media Type
Clear Water
Current
1.00 A
Rotation Speed - Maximum
3,450 RPM
Frequency
60 Hz
Liquid Temperature - Maximum
86 Degrees F
Flow Rate @ 5 ft of Head
23.3 gpm
Standards
cULus
Shaft Seal Material
Fluoroelastomer
Volute Material
Nylon
Power Source - TS Only
Corded Electric

Description

Plug-In Utility Pump, HP 1/6, Rated Voltage 230V AC, Hz 60 Hz, Amps 1 AC A, Switch Actuation No Switch Included, Body Material Cast Aluminum, Impeller Material Nylon, Shaft Seal Material - Pumps Fluoroelastomer, Flow Rate @ 5 Ft. of Head 23.25 gpm, Flow Rate @ 10 Ft. of Head 19.85 gpm, Flow Rate @ 20 Ft. of Head 8.8 gpm, Max. Head 26 ft, Width at Widest Point 6 1/8 in, Overall Height 8 1/8 in, Max. Liquid Temp. 120 Degrees F, Discharge 1 in FNPT, RPM 3,450 RPM, Duty Cycle Continuous
