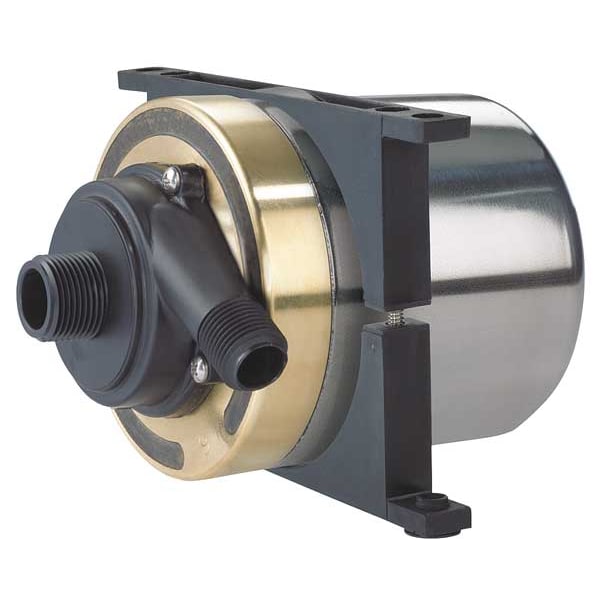

Little Giant Pump

Pump, 6-1/4 In. L, 4-1/2 In. W, 4-1/2 In. H

product price: $367.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • HP 1/12 hp
  • Voltage 115V
  • GPH of Water @ 5 Ft. of Head 667
  • Amps 2.5 A
  • Max. Head 14 ft
See all product information

Product Information

Dimensions

Length 6 1/4 in
Height 4 1/2 in
Cord Length 20 ft
Width 4 1/2 in
Manufacturer Warranty Length 2 yr
Overall Width 4.5 in
Overall Length 6.5 in
Compatible Discharge Pipe Size 1/2 in
Overall Height 4.5 in
Compatible Intake Pipe Size 3/4 in

Details

Item Centrifugal Pump
HP 1/12 hp
Voltage 115V
GPH of Water @ 5 Ft. of Head 667
Amps 2.5 A
Max. Head 14 ft
Hz 60
Duty Continuous
Impeller Material Nylon
Motor Type Shaded Pole
GPH of Water @ 10 Ft. of Head 425
GPH of Water @ 1 Ft. of Head 780
Cord Type SJTOW
Overload Protection yes
Housing Material Nylon
Inlet Threaded
Full Load Amps 2.5 A
Inlet Type Threaded
Seal Material Viton
Motor RPM 3,450 RPM
Standards CSA Certified, UL Listed
Maximum RPM 3,450 RPM
Maximum Flow Rate 885 gph
Electrical Connection Type Plug-In
Maximum Media Temperature 120 Degrees F
Intake Type NPT
Frequency 60 Hz
Nameplate Voltage 115V AC
Motor Sealing Oil-Filled
Horsepower 1/12 hp
Flow Rate @ 5 ft of Head (Maximum) 667 gph
Discharge Type NPT
Duty Cycle Continuous
Seal Type Oil Seal
Flow Rate @ 10 ft of Head (Maximum) 420 gph
Flow Rate @ 1 ft of Head (Maximum) 810 gph
Compatible with Media Type Freshwater, Saltwater
Maximum Feet of Head 14 ft
Pump Housing Material Bronze
Pumping Application Air Conditioners, Machine Tool Coolants and Mild Acids, Medium to Large Fountains, Ponds, Streams and for Aeration, Water Displays, Water Gardens, Water Transfer or Recirculation Water Displays, Waterfalls
Thermal Overload Protection Yes

Description

Centrifugal Pump, Pump Housing Material Bronze, Horsepower 1/12 hp, Nameplate Voltage 115V AC, Flow Rate @ 1 ft of Head (Maximum) 810 gph, Flow Rate @ 5 ft of Head (Maximum) 667 gph, Flow Rate @ 10 ft of Head (Maximum) 420 gph, Maximum Feet of Head 14 ft, Compatible Intake Pipe Size 3/4 in, Compatible Discharge Pipe Size 1/2 in, Intake Type NPT, Discharge Type NPT, Cord Length 20 ft, Motor Sealing Oil-Filled, Amps 2.5 A, Compatible with Media Type Freshwater, Saltwater, Duty Cycle Continuous
