Little Giant Pump

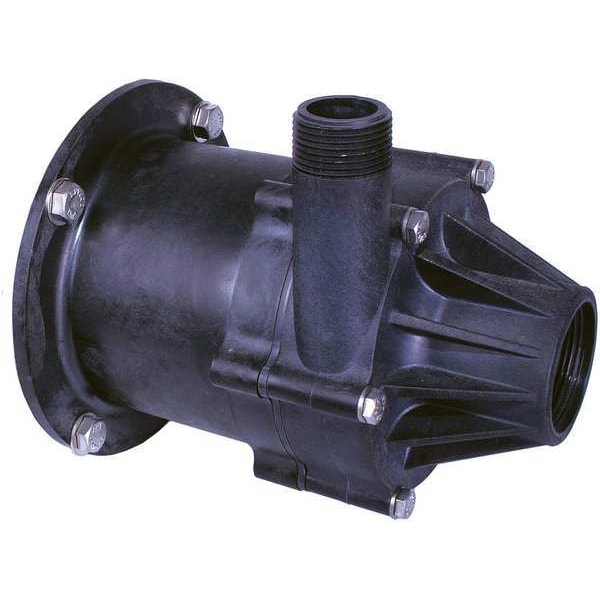

Pump Head, Without Motor

product price: $943.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • For Use With Highly Corrosive Chemicals
  • Impeller Material Glass-Filled Polyphenylene Sulfide
  • Manufacturers Warranty Length 1 yr
  • Shaft Material Ceramic
  • Housing Material Glass-Filled Polyphenylene Sulfide
See all product information

Product Information

Dimensions

Manufacturers Warranty Length 1 yr
Intake Pipe Size 1 1/2 in
Overall Height 8.5 in
Overall Width 8.56 in
Discharge Pipe Size 1 in
Overall Length 8 in

Details

For Use With Highly Corrosive Chemicals
Item Magnetic Drive Pump Head
Impeller Material Glass-Filled Polyphenylene Sulfide
Shaft Material Ceramic
Housing Material Glass-Filled Polyphenylene Sulfide
Product Type Magnetic Drive Pump Head
Horsepower (Maximum) 3/4 hp
Flow Rate @ 50 ft of Head (Maximum) 20 gpm
Discharge Pipe Type NPT
Flow Rate @ 20 ft of Head (Maximum) 42 gpm
Media Temperature (Maximum) 200 Degrees F
Flow Rate @ 5 ft of Head (Maximum) 48.8 gpm
Volute Material Glass-Filled Polyphenylene Sulfide
Case Pressure (Maximum) 30 psi
Viscosity (Maximum) 100 SUS
Flow Rate @ 1 ft of Head (Maximum) 51 gpm
Flow Rate @ 10 ft of Head (Maximum) 46 gpm
Standards C-cCSAus Listed
Motor Mounting Type Close Coupled
Discharge Rotation 360 Degrees
Feet of Head (Maximum) 60 ft
Specific Gravity (Maximum) 1.1
Impeller Design Closed
For Use With Potable Systems No
Flow Rate @ 30 ft of Head (Maximum) 37 gpm
Intake Pipe Type NPT
Flow Rate @ 40 ft of Head (Maximum) 30 gpm

Description

Magnetic Drive Pump Head, Case Pressure (Maximum) 30 psi, Compatible Motor Frame Not Applicable, Discharge Pipe Size 1 in, Discharge Pipe Type NPT, Discharge Rotation 360 Degrees , Feet of Head (Maximum) 60 ft, Flow Rate @ 10 ft of Head (Maximum) 46 gpm, Flow Rate @ 20 ft of Head (Maximum) 42 gpm, Flow Rate @ 30 ft of Head (Maximum) 37 gpm, Flow Rate @ 50 ft of Head (Maximum) 20 gpm, Horsepower (Maximum) 3/4 hp, Housing Material Glass-Filled Polyphenylene Sulfide, Impeller Design Closed
