Shop LITTLE GIANT PUMP

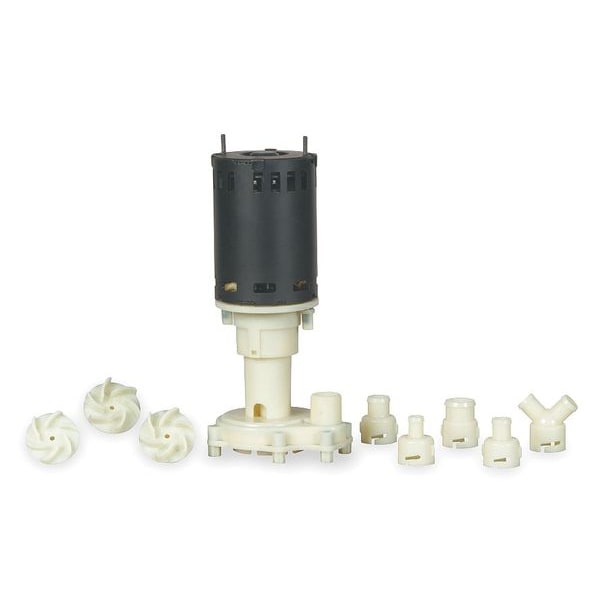

Pump, Ice Machine

  • Mfr # 545600

  • Zoro # G1112842

product price:  $98.55
/ea

Key Features

For Use With
Most Brands
Features
Corrosion-Resistant, Moisture Proof Windings, Pump Easily Disassembles for Installing and Servicing
Includes
Impeller Spring, Impeller Thumb Screw, (6) Volute Thumb Screws
Height
10 in
Diameter
4 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
545600
Zoro #
G1112842
UPC #
010121107052
Country of Origin
China

Dimensions

Height
10 in
Diameter
4 1/2 in
Length
4.44 in
Manufacturer Warranty Length
1 yr
Impeller Outside Diameter
1.75 in, 1.83 in, 1.95 in, 2.1 in
Overall Width
3.75 in
Intake Hose or Tube Inside Diameter
1/2 in, 5/8 in, 3/4 in, 1 in
Compatible Discharge Pipe Size
1/2 in, 5/8 in, 3/4 in, 1 in
Cord Length
3 ft
Discharge Adapter Size
1/2 in, 5/8 in, 3/4 in, 1 in
Overall Height
10.4 in
Overall Length
4.44 in
Adapter Discharge Diameter
1/2 in, 5/8 in, 3/4 in, 1 in
Intake Hose Inside Diameter
1/2 in, 5/8 in, 3/4 in, 1 in
Discharge Diameter
1/2 in
Wire Rope Length
4.44 in

Details

Item
Ice Machine Pump
For Use With
Most Brands
Features
Corrosion-Resistant, Moisture Proof Windings, Pump Easily Disassembles for Installing and Servicing
Includes
Impeller Spring, Impeller Thumb Screw, (6) Volute Thumb Screws
Amps
1.5/0.75
Voltage
115/230
Standards
ANSI 372, CSA Certified, NSF Certified
Maximum Flow Rate
825 gph
Pump Type
Universal Ice Machine Pump
Electrical Connection Type
Hardwired
Intake Type
Screened
Pump Housing Material
ABS
Frequency
60 Hz
Horsepower
1/24 hp
Thermal Overload Protection
Yes
Number of Discharge Adapters
5
For Use With Potable Systems
Yes
Motor Enclosure
Totally Enclosed Fan Cooled
Nameplate Voltage
115/230V AC
Number of Included Impellers
4
Maximum Feet of Head
2 ft
Discharge Type
Barbed
Feet of Head (Maximum)
12 ft
Flow Rate (Maximum)
13.75 gpm
Adapter Discharge Standard
Barbed
Inlet Standard
Screened
Discharge Standard
Quick Connect

Description

Ice Machine Pump, Pump Type Universal Ice Machine Pump, For Use With Potable Systems Yes, Pump Housing Material ABS, Horsepower 1/24 hp, Nameplate Voltage 115/230V AC, Discharge Adapter Size 1/2 in, 5/8 in, 3/4 in, 1 in, Intake Hose or Tube Inside Diameter 1/2 in, 5/8 in, 3/4 in, 1 in, Compatible Discharge Pipe Size 1/2 in, 5/8 in, 3/4 in, 1 in, Discharge Type Barbed, Intake Type Screened

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
