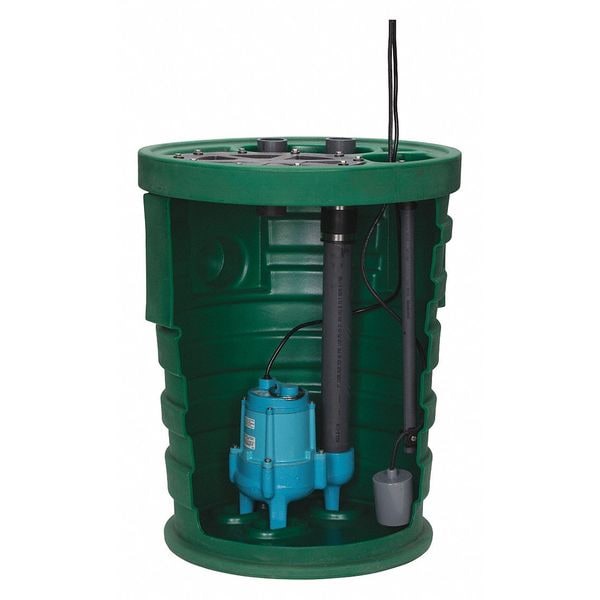

Little Giant Pump Sewage System, 1/2HP, 4inx2in, 9.5A, 1750rpm 511661 - main

Sewage System, 1/2HP, 4inx2in, 9.5A, 1750rpm

  • Mfr # 511661

  • Zoro # G1617668

product price: $820.99
/ea
Item requires special delivery charges. A $45.00 per item surcharge will be applied.

Key Features

Input Phase AC
1
Basin Height
32 5/8 in
Hz
60 Hz
Tank Length
24"
Features
Radial Rib Design for Extra Strength, Molded Inlet Hub, Pump Access Cover
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
511661
Zoro #
G1617668
UPC #
010121147744
Country of Origin
United States

Dimensions

Basin Height
32 5/8 in
Tank Length
24"
Basin Dia.
24 in
Cord Length
20 ft
Cord Length - Pumps
20 ft.
Cord Size
18-3
Inlet Dia.
4 in
Pump Discharge Diameter
2 in
Vent Size
2 in
Inlet Diameter
4 in
Basin Diameter
24 in
Discharge Diameter
2 in
For Vent Pipe Diameter
2 in

Details

Input Phase AC
1
Hz
60 Hz
Features
Radial Rib Design for Extra Strength, Molded Inlet Hub, Pump Access Cover
Basin Capacity
41 gal
Item
Sewage Ejector System
HP
1/2
Amps
9.5
Outlet
2"
Switch Type - Pumps
Vertical
GPM of Water @ 15 Ft. of Head
70
GPM of Water @ 10 Ft. of Head
95
Item - Sump/Sewage Pump Systems
Simplex Sewage System
Phase
Single
GPM of Water @ 20 Ft. of Head
25
GPM of Water @ 5 Ft. of Head
120
Cover Material
Structural Foam Polyethylene
Inlet
4 in
Voltage
115
Application
Sewage Transfer
Amps - Pumps
9.50
Max. Head - Pumps
25 ft.
Pump HP
1/2
Discharge NPT
2" F
Motor RPM
1750
Voltage - Pumps
120VAC
Max. Liquid Temp.
120 Degrees F
Max. Head
25 ft
Pump Body Material
Polyethylene
RPM
1,750 RPM
Phase - Pumps
1
Switch Electrical Connection
Piggyback
Flow Rate @ 20 Ft. of Head
25 gpm
Flow Rate @ 5 Ft. of Head
120 gpm
Alarm Included
No
Switch Actuation
Tether Float
Flow Rate @ 10 Ft. of Head
95 gpm
Number of Pumps
1
Rated Voltage
120V AC
Flow Rate @ 15 Ft. of Head
70 gpm
Flow Rate @ 10 ft of Head
95 gpm
Liquid Temperature - Maximum
120 Degrees F
Horsepower
1/2 hp
Includes Alarm
No Alarm Included
Rotation Speed - Maximum
1,750 RPM
Frequency
60 Hz
Feet of Head - Maximum
25 ft

Description

Sewage Ejector System, HP 1/2, Number of Pumps 1, Rated Voltage 120V AC, Hz 60 Hz, Phase - Pumps 1, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, Pump Body Material Polyethylene, Flow Rate @ 5 Ft. of Head 120 gpm, Flow Rate @ 10 Ft. of Head 95 gpm, Flow Rate @ 15 Ft. of Head 70 gpm, Flow Rate @ 20 Ft. of Head 25 gpm, Cord Length 20 ft, Max. Liquid Temp. 120 Degrees F, Max. Head 25 ft, RPM 1,750 RPM, Basin Capacity 41 gal, Basin Dia. 24 in, Basin Height 32 5/8 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
