Submersible Pump, 1.1 A, 115 V, 1/150 hp, Single Phase, 10.2 ft Max Head, 1/4 in Intake and Disch

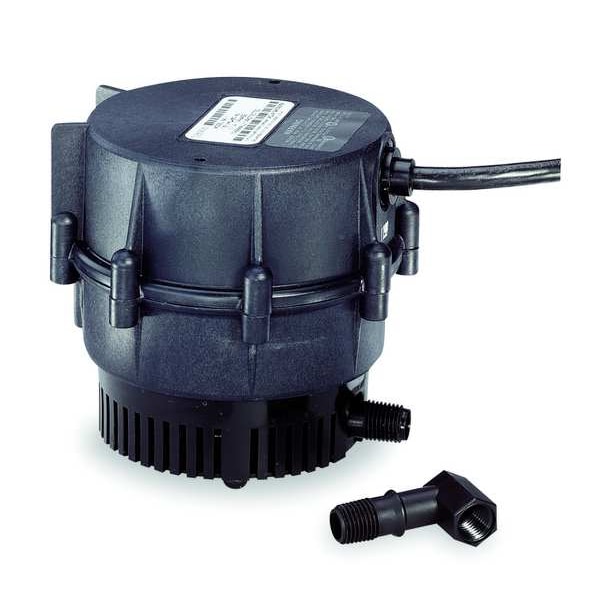

The LITTLE GIANT PUMP 526003 is a compact submersible centrifugal pump from the NK-1 Series for transferring or recirculating liquid in commercial, industrial, and home applications. It features a 1/150 HP oil-filled motor and can be installed horizontally or vertically. The pump is used for applications such as aquariums, swimming pools, water displays, ice makers, air conditioners, boat bailing, fuel oil transfer, machine tool coolant circulation, and pumping mild chemicals including soap solutions, acids, plating solutions, and fertilizers.

Key features of the LITTLE GIANT PUMP 526003:

• Flow rate: Delivers up to 210 GPH at 1 ft of head and 150 GPH at 5 ft of head.
• Maximum head: Rated for up to 10.2 ft of head.
• Motor: 115V AC, single-phase, shaded pole motor with thermal overload protection.
• Housing and impeller: Nylon housing with an open nylon impeller; screened inlet helps block larger debris.
• Discharge connection: 1/4 in. MNPT outlet; accepts 1/2 in. I.D. tubing.
• Installation: Submersible design with horizontal or vertical mounting options.
• Continuous duty: Built for continuous operation.
• Temperature and cord: Handles liquid temperatures up to 120 degrees F and includes a 6 ft cord.
• Size: Measures approximately 4.3 in. L x 4.3 in. W x 4.6 in. H.
