Shop TACO

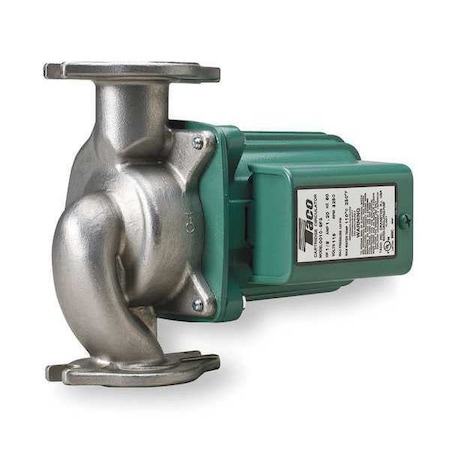

Potable Water Circulating Pump, 1/35 hp, 115V, 1 Phase, Flange Connection

  • Mfr # 005-SF2

  • Zoro # G2297005

product price:
$
550.92
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Phase
Single
Horsepower
1/35 hp
Series
005
Inlet/Outlet Size
3/4 in to 1-1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
005-SF2
Zoro #
G2297005
UPC #
687752592207
Country of Origin
United States
Item
Circulating Pump
Voltage
115V AC
Phase
Single
Horsepower
1/35 hp
Series
005
Pump Type
Standard
Number of Speeds
1
Max. GPM @ Head
18.5 gpm @ 1 ft
Maximum Feet of Head
9 ft
Min. GPM @ Head
3 gpm @ 8 ft
Connection Type
Flange
Mechanical Seal
No
Pump Mount
In Line
Includes
Flange Gaskets, Impedance Thermal Proctection
Loop Configuration
Open
Best Efficiency GPM @ Head
11 gpm @7 ft
Shut-Off
9 ft
Compliance
Low Lead,NSF-372
Standards
California Health And Safety Code Section 116875 / AB1953 And Vermont Act 193, NSF, UL-CUS
Amps
0.54 A
Features
Maintenance Free, Wet Rotor
Thermal Protection
Impedance
Drive Type
Direct
Impeller Material
Noryl(R)
Shaft Material
Ceramic
Series Family
00
Maximum Flow Rate @ 50 Feet of Head
[DELETE]
Frequency
60 Hz
Pump Housing Material
Stainless Steel
Body Gasket Material
EPDM
Maximum Media Temperature
220 Degrees F
Rotor Type
Wet
Minimum Media Temperature
40 Degrees F
Maximum Operating Pressure
125 psi
Maximum Flow Rate @ 10 Feet of Head
18 gpm
Maximum RPM
3,250 RPM
Flange or Union Included
No
For Use With Potable Systems
Yes
Compatible Media Type
Water
Nameplate Voltage
115V AC
Maximum Flow Rate @ 5 Feet of Head
11 gpm
Maximum Flow Rate @ 1 Feet of Head
18 gpm
Feet of Head - Maximum
9 ft
Pump Casing Material
Stainless Steel
Connection Standard
Flange
Media Temperature - Minimum
40 Degrees F
For Low Lead Compliance Level
CE
Full Load Current
0.54 A
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Revolutions Per Minute - Maximum
3,250 RPM
Includes Volute
Volute Included
Operating Pressure - Maximum
125 psi
Includes Flange
No Flange Included
Media Temperature - Maximum
220 Degrees F
Flow Rate - Maximum
19 gpm

Description

Circulating Pump, Compatible Intake Pipe Size 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, Connection Type Flange, Face to Face Dimension 6 3/8 in, Flange or Union Included No, For Use With Potable Systems Yes, Horsepower 1/35 hp, Maximum Feet of Head 9 ft, Maximum Flow Rate @ 1 Foot of Head 18 gpm, Nameplate Voltage 115V AC, Number of Speeds 1, Phase Single, Pump Type Standard, Series Family 00, Maximum Flow Rate @ 5 Feet of Head 11 gpm, Series 005, Amps 0.54 A, Body Gasket Material EPDM
