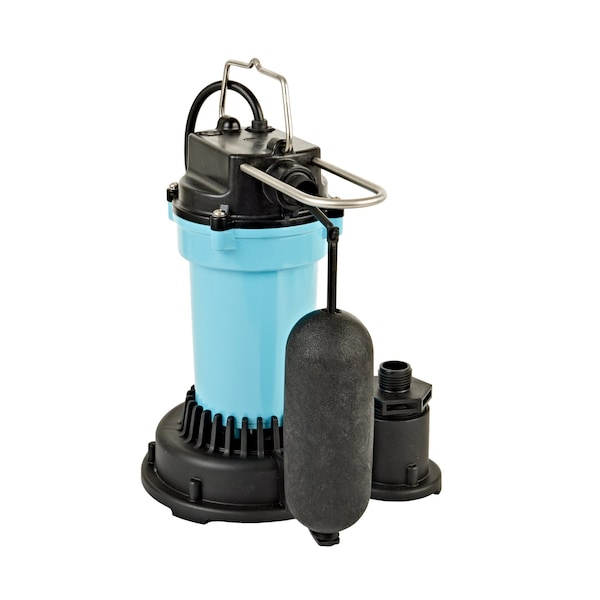

Little Giant Pump Submersible Sump Pump, 10ft, 10.875 in, 115V AC 505702 - main

Submersible Sump Pump, 10ft, 10.875 in, 115V AC

  • Mfr # 505702

  • Zoro # G301981678

product price: $252.99
/ea
Free Shipping & Returns

Key Features

Cord Length
10 ft
HP
1/4
Impeller Material
Nylon
Max. Head
25 ft
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
505702
Zoro #
G301981678
UPC #
0010121003385
Country of Origin
China

Dimensions

Cord Length
10 ft
Min. Sump Pit Dia.
14 in
Manufacturers Warranty Length
2 yr
Sump Pit Diameter - Minimum
14 in
Discharge Diameter
1 1/2 in
Width at Widest Point
10 3/8 in
Body Diameter
8 3/4 in
Overall Height
10 7/8 in
Solids Diameter - Maximum
3/8 in

Details

HP
1/4
Impeller Material
Nylon
Max. Head
25 ft
Phase
Single
NEC Cord Designation
SJTW
Gauge/Conductor
18/3
Application
Dewatering, Transfer
Agency Compliance
cCSAus Listed
Thermal Protection
Auto
On Point
7 - 10 in
Item
Submersible Sump Pump
Off Point
2 - 5 in
Base Material
Polypropylene
Switch Electrical Connection
Integral
Switch Actuation
Vertical Float
Flow Rate @ 10 Ft. of Head
30 gpm
Body Material
Cast Iron
Series
5.5-ASPA
Rated Voltage
115V AC
Discharge Gender
Female
Liquid Temperature - Maximum
120 Degrees F
Discharge Standard
NPT
Motor Housing Material
Aluminum
Volute Material
Plastic
Hazardous Location Class
Not Rated
Installation
Submersible
Power Source
Corded Electric
Includes Alarm
No Alarm Included
Standards
cCSAus
Rotation Speed - Maximum
3,450 RPM
Impeller Design
Non-Clog
For Media Type
Clear Water
Operation
Automatic
Horsepower
1/4 hp
Feet of Head - Maximum
25 ft
Duty Cycle
Continuous
For Industry
Residential
Flow Rate @ 10 ft of Head
30 gpm
Shaft Seal Type
Double Mechanical
Frequency
60 Hz
Requires Control Panel
No Control Panel Required
Current
3.5 A
Shaft Seal Material
Nitrle, carbon/ceramic

Description

Submersible Sump Pump, HP 1/4, Rated Voltage 115V AC, Switch Actuation Vertical Float, Switch Electrical Connection Integral, Off Point 2 - 5 in, On Point 7 - 10 in, Body Material Cast Iron, Impeller Material Nylon, Flow Rate @ 10 Ft. of Head 30 gpm, Max. Head 25 ft, Min. Sump Pit Dia. 14 in, Overall Height 10 7/8 in, Thermal Protection Auto, Width at Widest Point 10 3/8 in, Duty Cycle Continuous, Cord Length 10 ft, NEC Cord Designation SJTW, Gauge/Conductor 18/3, Agency Compliance cCSAus Listed
