Shop LITTLE GIANT PUMP

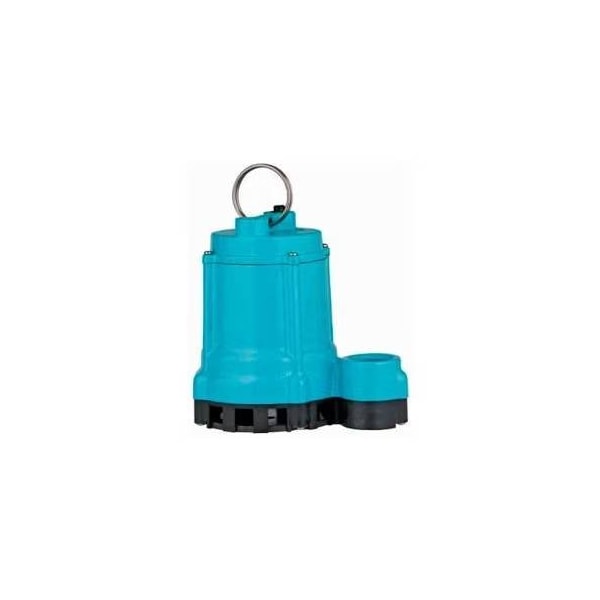

Submersible Sump Pump, 20ft, 11.25 in, 115V AC

  • Mfr # 506804

  • Zoro # G601968799

product price:
$
278.99
/ea
Free Shipping & Returns

Key Features

Cord Length
20 ft
HP
1/3
Impeller Material
Nylon
Max. Head
28 ft
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
506804
Zoro #
G601968799
UPC #
0010121149052
Country of Origin
China

Dimensions

Cord Length
20 ft
Min. Sump Pit Dia.
12 in
Manufacturers Warranty Length
3 yr
Sump Pit Diameter - Minimum
18 in
Body Diameter
8 1/2 in
Width at Widest Point
10 3/4 in
Overall Height
11 1/4 in
Solids Diameter - Maximum
1/2 in
Discharge Diameter
1 1/2 in

Details

HP
1/3
Impeller Material
Nylon
Max. Head
28 ft
Phase
Single
On Point
8 - 11 in
Gauge/Conductor
18/3
Base Material
Polypropylene
Item
Submersible Sump Pump
Application
Dewatering, Transfer, Waste Removal
Agency Compliance
cCSAus Listed
Off Point
2 - 5 in
NEC Cord Designation
SJTW
Thermal Protection
Auto
Switch Actuation
Vertical Float
Body Material
Cast Iron
Flow Rate @ 10 Ft. of Head
50 gpm
Switch Electrical Connection
Integral
Series
6EC-CIA-SFS
Rated Voltage
115V AC
Motor Housing Material
Cast Iron
Power Source
Corded Electric
Discharge Standard
NPT
Frequency
60 Hz
Hazardous Location Class
Not Rated
For Industry
Residential
Horsepower
1/3 hp
Includes Alarm
No Alarm Included
Installation
Submersible
Shaft Seal Type
Single Mechanical
Current
5.0 A
Shaft Seal Material
Ceramic/Nitrile Rubber
Impeller Design
Semi-Open
Requires Control Panel
No Control Panel Required
Standards
cCSAus
Rotation Speed - Maximum
3,450 RPM
Flow Rate @ 10 ft of Head
50 gpm
Volute Material
Cast Iron
Operation
Automatic
Duty Cycle
Continuous
For Media Type
Effluent Water
Liquid Temperature - Maximum
140 Degrees F
Discharge Gender
Female
Feet of Head - Maximum
28 ft
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Submersible Sump Pump, HP 1/3, Rated Voltage 115V AC, Switch Actuation Vertical Float, Switch Electrical Connection Integral, Off Point 2 - 5 in, On Point 8 - 11 in, Body Material Cast Iron, Impeller Material Nylon, Flow Rate @ 10 Ft. of Head 50 gpm, Max. Head 28 ft, Min. Sump Pit Dia. 12 in, Overall Height 11 1/4 in, Thermal Protection Auto, Width at Widest Point 10 3/4 in, Duty Cycle Continuous, Cord Length 20 ft, NEC Cord Designation SJTW, Gauge/Conductor 18/3, Agency Compliance cCSAus Listed
