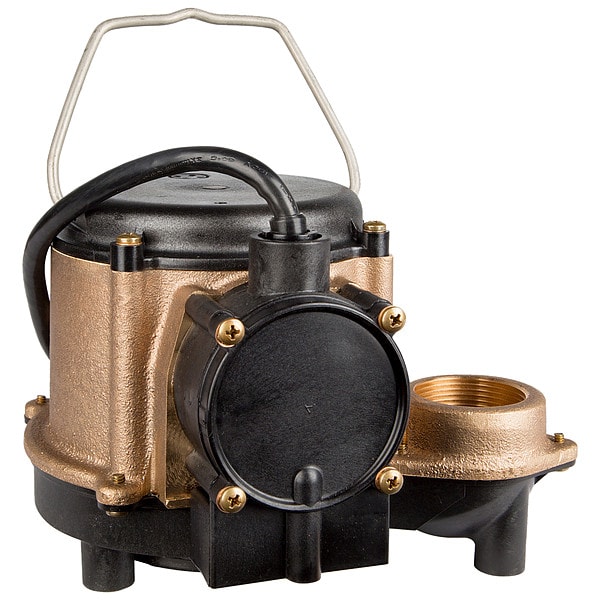

Little Giant Pump Submersible Sump Pump, 10ft, 6 in, 115V AC 506357 - main

Submersible Sump Pump, 10ft, 6 in, 115V AC

  • Mfr # 506357

  • Zoro # G307194522

product price: $459.99
/ea
Free Shipping & Returns

Key Features

Cord Length
10 ft
HP
1/3
Hz
50/60 Hz
Impeller Material
Nylon
Max. Head
18 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
506357
Zoro #
G307194522
UPC #
-
Country of Origin
Mexico

Dimensions

Cord Length
10 ft
Max. Diameter Solids
1/8 in
Min. Sump Pit Dia.
10 in
Manufacturers Warranty Length
3 yr
Width at Widest Point
9 1/2 in
Overall Height
6 in
Body Dia.
8 1/4 in
Discharge Dia.
1 1/2 in
Sump Pit Diameter - Minimum
18 in
Discharge Diameter
1 1/2 in
Body Diameter
7 1/2 in
Solids Diameter - Maximum
0 in

Details

HP
1/3
Hz
50/60 Hz
Impeller Material
Nylon
Max. Head
18 ft
Phase
Single
NEC Cord Designation
SJTW
Amps
9 A
Shaft Seal Material - Pumps
Carbon, Ceramic
Off Point
1 - 4 in
Thermal Protection
Auto
On Point
7 - 10 in
Base Material
Plastic
Item
Submersible Sump Pump
Alarm Included
No
Gauge/Conductor
18/3
Max. Liquid Temp.
140 Degrees F
Application
Dewatering, Transfer
Agency Compliance
cCSAus
Discharge
1 1/2 in FNPT
Discharge Standard
NPT
RPM
1,750 RPM
Flow Rate @ 15 Ft. of Head
12.5 gpm
Flow Rate @ 10 Ft. of Head
29 gpm
Switch Actuation
Diaphragm
Duty Cycle
Continuous
Flow Rate @ 5 Ft. of Head
46 gpm
Discharge Gender
Female
Series
6-CBA
Body Material
Cast Bronze
Phase - Pumps
1
Switch Electrical Connection
Integral
Rated Voltage
115V AC
Flow Rate @ 10 ft of Head
29 gpm
Power Source
Corded Electric
Rotation Speed - Maximum
1,500 RPM
Installation
Submersible
Shaft Seal Material
Carbon/ Ceramic/Nitrile Rubber
Current
9.0 A
Includes Alarm
No Alarm Included
Frequency
60 Hz
Feet of Head - Maximum
18 ft
Operation
Automatic
Shaft Seal Type
Single Mechanical
Liquid Temperature - Maximum
140 Degrees F
For Industry
Residential
Hazardous Location Class
Not Rated
Volute Material
Plastic
Standards
cCSAus
For Media Type
Clear Water
Horsepower
1/3 hp
Requires Control Panel
No Control Panel Required
Impeller Design
Non-Clog
Motor Housing Material
Bronze

Description

Submersible Sump Pump, HP 1/3, Phase - Pumps 1, Rated Voltage 115V AC, Hz 50/60 Hz, Amps 9 A, Switch Actuation Diaphragm, Switch Electrical Connection Integral, Off Point 1 - 4 in, On Point 7 - 10 in, Body Material Cast Bronze, Impeller Material Nylon, Shaft Seal Material - Pumps Carbon, Ceramic, Flow Rate @ 5 Ft. of Head 46 gpm, Flow Rate @ 10 Ft. of Head 29 gpm, Flow Rate @ 15 Ft. of Head 12.5 gpm, Max. Head 18 ft, Min. Sump Pit Dia. 10 in, Body Dia. 8 1/4 in, Overall Height 6 in
