Shop TSURUMI

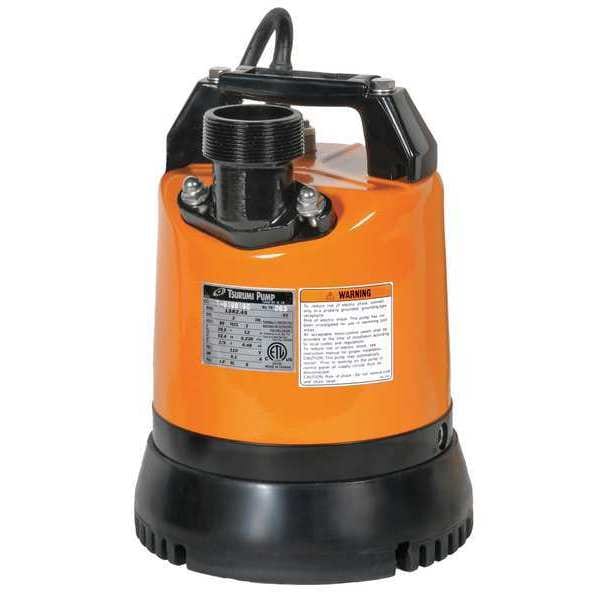

2/3 HP 2" Plug-In Utility Pump 115V Float

  • Mfr # LSR2.4S-61 (115V)
  • Zoro # G5297214
product price:
$
586.99
/ea
Free Shipping & Returns

Key Features

Cord Length
32 ft
Discharge NPT
2"
Housing Material
Ethylene Propylene Rubber
HP
2/3
Hz
60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LSR2.4S-61 (115V)
Zoro #
G5297214
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Cord Length
32 ft
Cord Length - Pumps
32 ft.
Diameter
8-1/4"
Width
8-1/4"
Height
11-3/8"
Cord Size
16/3
Length
11-3/8"
Min. Sump Pit Dia.
12 in
Max. Diameter Solids
1/4 in
Manufacturers Warranty Length
2 yr
Max. Dia. Solids
1/4"
Overall Height
11 3/8 in
Width at Widest Point
8 1/4 in
Body Dia.
8 1/4 in
Discharge Dia.
2 in
Minimum Water Depth
12 in
Sump Pit Diameter - Minimum
12 in
Discharge External Diameter
2 in
Solids Diameter - Maximum
1/4 in
Depth Pumped - Minimum
1/5 in
Body Diameter
8 1/4 in
Operating Water Depth - Minimum
12 in

Details

Discharge NPT
2"
Housing Material
Ethylene Propylene Rubber
HP
2/3
Hz
60 Hz
Impeller Material
Urethane Rubber
Max. Head
39 ft
Motor RPM
3255
Motor Type
PSC
Shaft Seal
Silicone Carbide
Voltage
115V
Phase
Single
Cord Type
3-Conductor STOW, Resists Water and Oil
Thermal Protection
Automatic
Pump RPM
3255
Item
Plug-In Utility Pump
Amps
6.10
Switch Type
Float
Max. Head - Pumps
39 ft.
Amps - Pumps
6.10
Agency Compliance
Etl/Cetl
GPM of Water @ 30 Ft. of Head
24
Handle
Top Carrying
Impeller Material - Pumps
Urethane Rubber
Switch Type - Pumps
Manual
Shaft Seal Material - Pumps
Silicone Carbide
Bearing Type
Double Shielded, Permanently Lubricated, High Temperature C3 Ball Bearings Rated for a B-10 Life
GPM of Water @ 35 Ft. of Head
11
Item - Dewatering Pumps
Utility/Dewatering Pump
GPM of Water @ 25 Ft. of Head
34
Max. Liquid Temp.
104 Degrees F
GPM of Water @ 10 Ft. of Head
57
Base Material
Rubber
Voltage - Pumps
120VAC
Pump Body Material
Steel
Duty
Continuous
Insulation Class
E
GPM of Water @ 20 Ft. of Head
44
For Use With
Nonflammable Liquids
GPM of Water @ 5 Ft. of Head
62
GPM of Water @ 15 Ft. of Head
50
Input Phase AC
1
Application
Nonflammable Liquids
Flow Rate @ 10 Ft. of Head
57 gpm
Flow Rate @ 20 Ft. of Head
44 gpm
Discharge Gender
Male
Flow Rate @ 15 Ft. of Head
50 gpm
Rated Voltage
110V AC
Body Material
Stainless Steel
RPM
3,255 RPM
Discharge Standard
NPT
Phase - Pumps
1
Discharge
2 in MNPT
Duty Cycle
Continuous
Flow Rate @ 5 Ft. of Head
62 gpm
Switch Actuation
No Switch Included
Pump Type
Construction Site and Residential Dewatering
Motor Housing Material
Steel
Standards
Etl/Cetl
Rotation Speed - Maximum
3,255 RPM
Power Source
Corded Electric
Flow Rate @ 5 ft of Head
62 gpm
Flow Rate @ 10 ft of Head
57 gpm
Series
LSR
Discharge External Standard
NPT
Horsepower
2/3 hp
For Media Type
Clear Water
Discharge External Gender
Male
Liquid Temperature - Maximum
104 Degrees F
Frequency
60 Hz
Flow Rate - Maximum
63 gpm
Includes Garden Hose Adapter
No Garden Hose Adapter Included
Shaft Seal Material
Silicone
Feet of Head - Maximum
39 ft
Current
6.10 A
Volute Material
Rubber
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Plug-In Utility Pump, HP 2/3, Rated Voltage 110V AC, Hz 60, Phase - Pumps 1, Amps 6.10, Switch Actuation No Switch Included, Body Material Stainless Steel, Impeller Material Urethane Rubber, Shaft Seal Material - Pumps Silicone Carbide, Flow Rate @ 5 Ft. of Head 62 gpm, Flow Rate @ 10 Ft. of Head 57 gpm, Flow Rate @ 15 Ft. of Head 50 gpm, Flow Rate @ 20 Ft. of Head 44 gpm, Max. Head 39 ft, Min. Sump Pit Dia. 12 in, Minimum Water Depth 12 in, Body Dia. 8 1/4 in, Width at Widest Point 8 1/4 in
