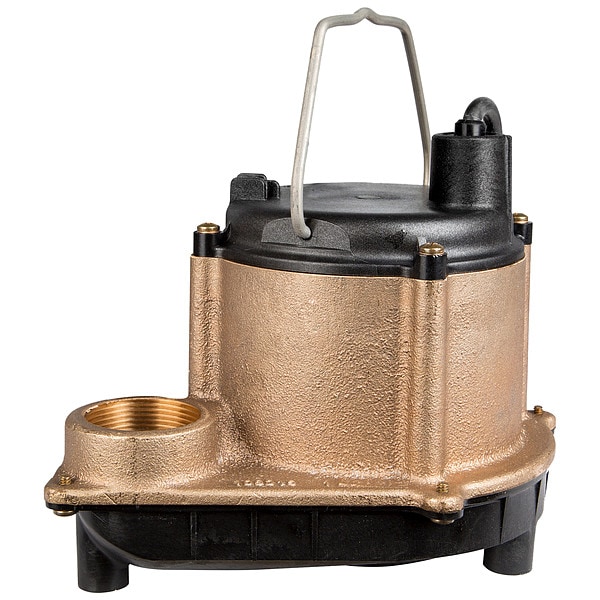

Little Giant Pump SubmersibleSumpPump, 10ft, 6in, 115VAC 506257 - main

SubmersibleSumpPump, 10ft, 6in, 115VAC

  • Mfr # 506257

  • Zoro # G907194533

product price: $646.99
/ea
Free Shipping & Returns

Key Features

Cord Length
10 ft
HP
1/3
Hz
60 Hz
Impeller Material
Nylon
Max. Head
18 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
506257
Zoro #
G907194533
UPC #
-
Country of Origin
Mexico

Dimensions

Cord Length
10 ft
Min. Sump Pit Dia.
10 in
Manufacturers Warranty Length
3 yr
Max. Diameter Solids
1/8 in
Overall Height
6 in
Discharge Dia.
1 1/2 in
Width at Widest Point
9 1/2 in
Body Dia.
8 1/4 in
Body Diameter
7 1/2 in
Sump Pit Diameter - Minimum
18 in
Solids Diameter - Maximum
0 in
Discharge Diameter
1 1/2 in

Details

HP
1/3
Hz
60 Hz
Impeller Material
Nylon
Max. Head
18 ft
Phase
Single
Item
Submersible Sump Pump
Alarm Included
No
Shaft Seal Material - Pumps
Carbon, Ceramic
Gauge/Conductor
18/3
Base Material
Polypropylene
Agency Compliance
cCSAus
Thermal Protection
Auto
Max. Liquid Temp.
140 Degrees F
Amps
9 A
Application
Dewatering, Transfer
NEC Cord Designation
SJTW
Flow Rate @ 5 Ft. of Head
46 gpm
Flow Rate @ 10 Ft. of Head
29 gpm
Flow Rate @ 15 Ft. of Head
12.5 gpm
Duty Cycle
Continuous
Phase - Pumps
1
Discharge Standard
NPT
Body Material
Cast Bronze
Discharge Gender
Female
RPM
1,750 RPM
Switch Actuation
No Switch Included
Discharge
1 1/2 in FNPT
Series
6-CBM
Rated Voltage
115V AC
Switch Electrical Connection
Manual
Liquid Temperature - Maximum
140 Degrees F
Current
9.0 A
Shaft Seal Type
Single Mechanical
Includes Alarm
No Alarm Included
Installation
Submersible
Operation
Manual
Standards
cCSAus
Requires Control Panel
No Control Panel Required
Feet of Head - Maximum
18 ft
For Industry
Residential
Frequency
60 Hz
Power Source
Corded Electric
Hazardous Location Class
Not Rated
Flow Rate @ 10 ft of Head
29 gpm
Volute Material
Plastic
Horsepower
1/3 hp
Impeller Design
Non-Clog
Rotation Speed - Maximum
1,500 RPM
For Media Type
Clear Water
Shaft Seal Material
Carbon/ Ceramic/Nitrile Rubber

Description

Submersible Sump Pump, HP 1/3, Phase - Pumps 1, Rated Voltage 115V AC, Hz 60 Hz, Amps 9 A, Switch Actuation No Switch Included, Switch Electrical Connection Manual, Off Point Not Applicable, On Point Not Applicable, Body Material Cast Bronze, Impeller Material Nylon, Shaft Seal Material - Pumps Carbon, Ceramic, Flow Rate @ 5 Ft. of Head 46 gpm, Flow Rate @ 10 Ft. of Head 29 gpm, Flow Rate @ 15 Ft. of Head 12.5 gpm, Max. Head 18 ft, Min. Sump Pit Dia. 10 in, Body Dia. 8 1/4 in
