  11. Pipe Thread Sealant 1.7 fl oz, Bottle, 545, Purple, Liquid

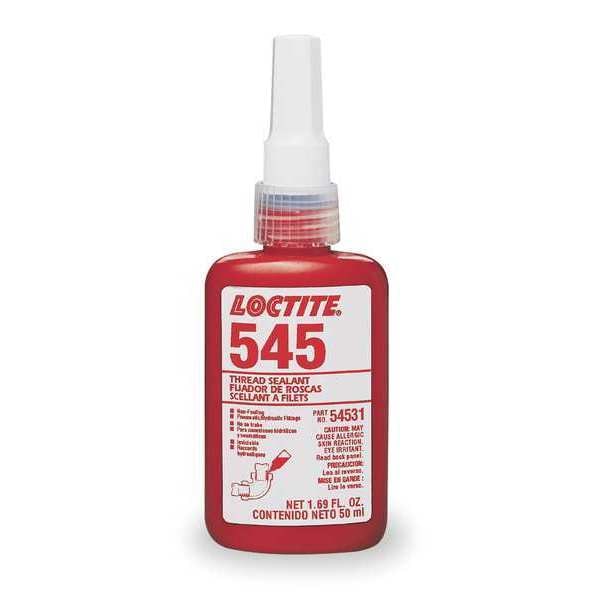

Loctite Pipe Thread Sealant 1.7 fl oz, Bottle, 545, Purple, Liquid 135486 - main

Pipe Thread Sealant 1.7 fl oz, Bottle, 545, Purple, Liquid

  • Mfr # 135486

  • Zoro # G3485361

product price: $49.19
/ea

Key Features

Container Size
1.7 fl oz
Container Type
Bottle
Color
Purple
Chemical Base
Methyl Methacrylate
Series
545
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
135486
Zoro #
G3485361
UPC #
079340545311
Country of Origin
United States

Dimensions

Container Size
1.7 fl oz
Size
50 mL
For Maximum Thread Diameter
3/4 in

Details

Item
Pipe Thread Sealant
Container Type
Bottle
Color
Purple
Chemical Base
Methyl Methacrylate
Series
545
Product Form
Liquid
Resistance Properties
Pressure Resistant
Begins to Harden
Not Specified
Viscosity
14,000cP
For Use With
Primer 7088, 7649, or 7471
Chemical Type
Methacrylate Ester
Flash Point
200 Degrees F
Application Temp. Range
72 Degrees F
Includes
Pneumatic and Hydraulic Fittings
Specific Gravity
1.02
Application
Locks and Seals Hydraulic and Pneumatic Fittings without Fouling the System, Suitable for Fittings Up to 50mm in Diameter
Performance Temp. Range
-65 Degrees to 300 Degrees F
Gas Pressure Range
10,000 psi
For Material Type
Metal
Standards
ISO 10964
Full Cure Time
1 day
Maximum Operating Pressure for Liquids
10,000 psi
Application Method
Brush
For Thread Type
Fine Threads
Shear Strength
220 psi
Mixing Required
No
Minimum Viscosity
9,000 cps
Maximum Viscosity
20,000 cps
Maximum Operating Temperature
300 Degrees F
Clean Up Method
Loctite Solvent
Minimum Operating Temperature
-65 Degrees F
Specific Sealing Application
For Hydraulic Systems
Compatible Primer Series
7088, 7471, 7649
Storage Requirements
8 Degrees to 21 Degrees C
VOC Content
19.01 g/L
Maximum Application Temperature
72 Degrees F
Cure Type
Anaerobic
Characteristics
Lubricity High Lubricity,No Fillers/Particles,Solvent Resistant,Viscosity Medium Viscosity

Description

Pipe Thread Sealant, Cure Type Anaerobic, Series 545, Container Size 1.7 fl oz, Container Type Bottle, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature -65 Degrees F, Maximum Operating Pressure for Liquids 10,000 psi, Color Purple, For Material Type Metal, Specific Sealing Application For Hydraulic Systems, Standards ISO 10964, For Maximum Thread Diameter 3/4 in, Application Method Brush, Chemical Base Methyl Methacrylate, Clean Up Method Loctite Solvent
