  11. Coupling, Bellows, Bore 1/2x3/4 In

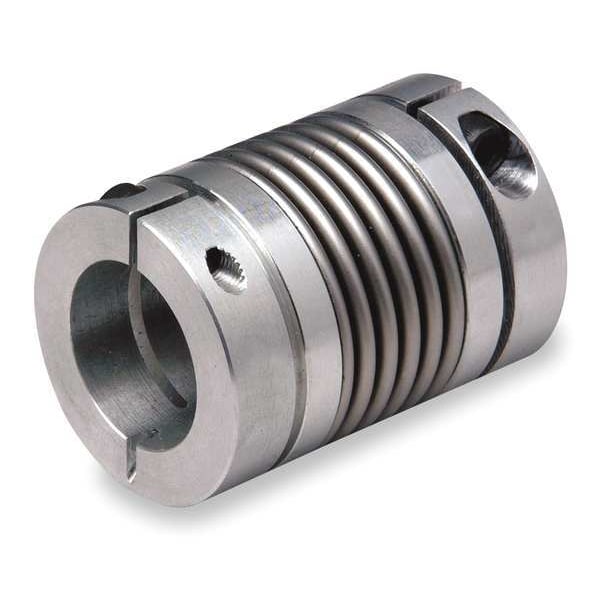

Lovejoy Coupling, Bellows, Bore 1/2x3/4 In BWLC63 1/2x3/4 - main

Coupling, Bellows, Bore 1/2x3/4 In

  • Mfr # BWLC63 1/2x3/4

  • Zoro # G2259756

product price: $249.99
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type - Couplings
1 Piece Clamp
Bore Dia.
1/2 in x 3/4 in
Rated Torque
159 in-lb
Max. RPM
12,700 RPM
Outside Dia.
1.772 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BWLC63 1/2x3/4
Zoro #
G2259756
UPC #
685144773890
Country of Origin
Germany

Dimensions

Bore Dia.
1/2 in x 3/4 in
Outside Dia.
1.772 in
Overall Length
2.48 in
Overall Length (mm)
63
Screw Size
M5
Length through Bore
0.472 in
Hub Dia.
1.772 in
Overall Length (In.)
2.480
Length through Bore (mm)
12.00
Length through Bore (In.)
0.472
Outside Dia. (In.)
1.772
Outside Dia. (mm)
45
Screw Size (mm)
M5
Size
BWLC63
Coupling Outside Diameter
1.77 in
Different Bore Sizes
No
Screw Thread Size
M5
Length Through Bore 1
0.47 in
Length Through Bore 2
0.47 in
Bore Diameter 2
25/64 in
Minimum Bore Diameter
25/64 in
Bore Diameter 1
63/64 in
Maximum Bore Diameter
63/64 in

Details

Shaft Locking Type - Couplings
1 Piece Clamp
Rated Torque
159 in-lb
Max. RPM
12,700 RPM
Material - Couplings
Aluminum
Max. Temp. Range (F)
212
Item - Motion Control Couplings
Motion Control Coupling
Max. Parallel Misalignment (In.)
0.008 in
Max. Axial Misalignment (In.)
+/-0.020
Material
Aluminum Hubs, Stainless Steel Bellows
Max. Temp.
212 Degrees F
Item
Motion Control Coupling
Min. Bore (In.)
0.394 in
Screw Type
Clamp Screw
Max. Angular Misalignment
1.5 Degrees
Min. Bore (mm)
10.0
Style
Bellows Clamp
Max. Bore (In.)
0.984 in
Max. Bore (mm)
25 mm
Torque (In.-Lbs.)
159
Axial Motion
0.02 in
Moment of Inertia
0.273 lb-in sq
Angular Misalignment
1.5 Degrees
For Misalignment Type
Angular, Axial, Parallel
Maximum Operating Temperature
212 Degrees F
Bellows Material
Stainless Steel
Application
Motion Control
Included Screws
Clamp Screw
Maximum Torque
159 lb-in
Torsional Stiffness
70,800 in-lb/rad
Resistance Properties
Corrosion Resistant
Maximum Speed
12,700 RPM
Features
High Torsional Stiffness, Low Inertia, Low Reactionary Loading, No Maintenance Required
System of Measurement
Inch
Parallel Misalignment
0.008 in
Hub Material
Aluminum
Shaft Locking Type
Clamp On

Description

Motion Control Coupling, Bore Diameter 1 63/64 in, Bore Diameter 2 25/64 in, Coupling Outside Diameter 1.77 in, Maximum Speed 12,700 RPM, Maximum Torque 159 lb-in, Hub Material Aluminum, Overall Length 2.48 in, Shaft Locking Type Clamp On, System of Measurement Inch, Bellows Material Stainless Steel, Different Bore Sizes No, Length Through Bore 1 0.47 in, Length Through Bore 2 0.47 in, Parallel Misalignment 0.008 in, Angular Misalignment 1.5 Degrees , Axial Motion 0.02 in
