  5. Industrial Fluorescent Fixture, F32T8, Length: 96"

This item is Discontinued.

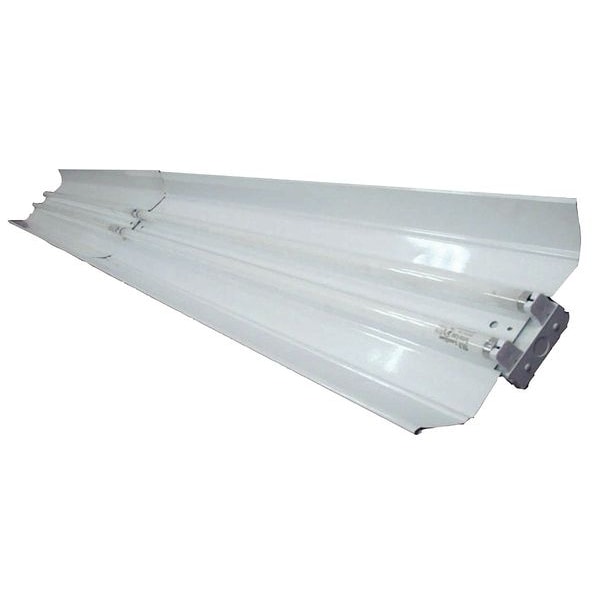

Lumapro Industrial Fluorescent Fixture, F32T8, Length: 96" 2NAX4

Industrial Fluorescent Fixture, F32T8, Length: 96" (Discontinued)

  • Mfr # 2NAX4
  • Zoro # G2915245
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
2NAX4
Zoro #
G2915245
UPC #
190735574669
Country of Origin
China

Dimensions

Width
10"
Channel Width
9 in
Fixture Width
10 in
Length
96"
Height
4"
Fixture Length
96 in
Fixture Height
4 in
Suggested Fixture Mounting Height
Up to 16 ft
Overall Width
10 in
Overall Height
4 in
Overall Length
96 in
Nominal Size - Fixtures
1 ft x 8 ft
Suggested Fixture Mounting Height Range
Up to 20 ft.

Details

Item
Standard Series Fluorescent Fixture
Voltage
120 to 277V
Lighting Certification
Unrated
Ballast Type
Electronic
Lamp Type
Fluorescent
Max. Fixture Wattage
112 W
Lighting Technology
Fluorescent
Lamp Quantity
4
Metal Gauge
22
Fixture Temp. Range
0 Degrees to 104 Degrees F
Fixture Wattage
112W
Standards
UL Listed
Lamp Included / Lamp Not Included
Lamp Not Included
Number of Light Bars
4
Description/Special Features
Tandem
Fixture Mounting Type
Suspended Pendant
Fixture Housing Color
White
Fixture Type - High and Low Bay Fixtures
Linear Low Bay
Ballast Quantity
1
Reflector Type
Non-Apertured
Housing Finish
Powder Coated
Suggested Lamp Item No.
2ETU3
Lamp Type - Fixtures
F32T8
Lamp Watts
32W
Ambient Temp. Range
0 Degrees to 104 Degrees F
Fixture Voltage
120 to 277
Channel Connector
Combination Screw On Endplate/Channel Connector
Lamp Watts - Fixtures
32 W
Mounting
Individually, Suspended
Series
LUMAPRO
Lamp Included
No
Fixture Ballast Type
Electronic
Max. Ambient Temp.
104 Degrees F
Linkable
Yes
Min. Ambient Temp.
0 Degrees F
Bay Light Type
Low Bay
For Bulb Type
F32T8
Bulbs Included
No
Housing Material
Steel
LED Replacement For
112W
Housing Color
White

Description

Standard Series Fluorescent Fixture, Lamp Quantity 4, Lamp Type F32T8, Lamp Watts 32W, Fixture Wattage 112W, Voltage 120 to 277VAC, Ballast Type Electronic, Ambient Temp. Range 0 Degrees to 104 Degrees F, Length 96 In., Width 10 In., Height 4 In., Lamp Not Included, Suggested Lamp Item No. 2ETU3, Non-Apertured, Housing Finish White Powder Paint, Mounting Individually, Suspended, Ballast Quantity 1, Channel Connector Combination Screw On Endplate/Channel Connector, Channel Width 9 In.
