Shop LUMINAIRE LED

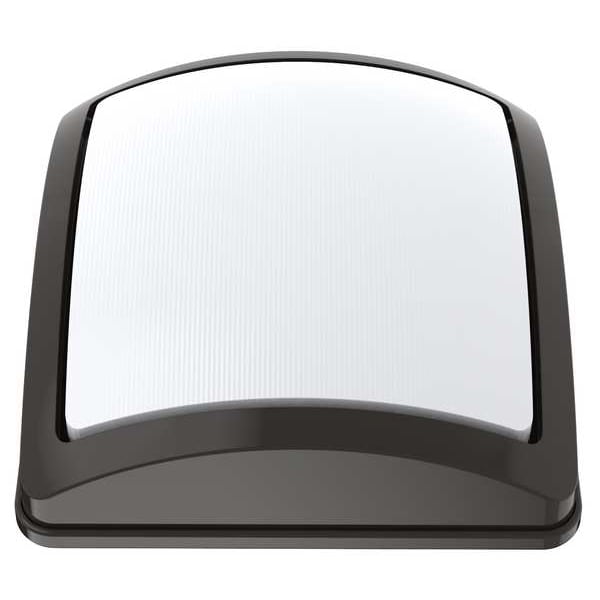

Vandal and Ligature Resistant Fixture

  • Mfr # SWP1212 MIN10 25W 40K MVOLT OP BRZ

  • Zoro # G301050268

product price:  $492.99
/ea
Free Shipping & Returns

Key Features

Voltage
120/277V AC
Watts
25
Dimmable
Yes
Finish
Powder Coated
Lighting Certification
Unrated
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
SWP1212 MIN10 25W 40K MVOLT OP BRZ
Zoro #
G301050268
UPC #
194994672197
Country of Origin
United States

Dimensions

Overall Length
12 3/8 in
Overall Width
12 3/8 in
Nominal Length
1 ft
Lens Thickness
0.14 in
Overall Height
5 in
Manufacturers Warranty Length
Lifetime Warranty; 10-Year Warranty on LED Boards

Details

Voltage
120/277V AC
Lumens
2,351 lm
Watts
25
Dimmable
Yes
Finish
Powder Coated
Item
Vandal and Ligature Resistant Fixture
Lighting Certification
Unrated
Reflector Type
Closed
Lens Type
Opal Lens
Mounting Style
Ceiling, Wall
Sensor Type
No Sensor
Max. Fixture Wattage
25 W
Series
SWP1212
Beam Angle
180 Degrees
Linkable Up To
Unlinkable
For Max. Bulb Wattage
25 W
Light Distribution Shape
Lambertain
Includes
TXSD -Torx Screwdriver Bit
Hazardous Location Rating
Not Rated
Type
Surface Light
Ceiling Mount Type
Ceiling Mount; Wall Mount
Rated Life
130,000 hr
Lens Shape
Curved
Standards
U.L., C.UL. Wet Location Listing standard. Meets Buy America(n) requirements.
Dimming Method
0-10V
Lens Material
Polycarbonate
Light Technology
LED
Light Color
White
Housing Color
Bronze
Max. Ambient Temp.
50 Degrees C
Dimming Range
100% to 10%
Emergency Battery Backup
No
IP Rating
Not Rated
Color Rendering Index
82
Ballast Start Type
No Ballast
Bulb Included
Integrated LED
Housing Material
Polycarbonate
Color Temperature
4000K
Fixture Ballast Type
No Ballast Required
Min. Ambient Temp.
-40 Degrees C
Warranty
Lifetime Warranty; 10-Year Warranty on LED Boards
Fixture Type
Vandal Resistant Surface Mount
For Bulb Type
Integrated LED
Mounting Hardware Included
No
Lumens per Watt
94 lm/W
Linkable
No
Ambient Temperature - Minimum
-40 Degrees C
Light Output
2,351 lm
Ambient Temperature - Maximum
122 Degrees F
Ballast Type
No Ballast Required
Color Selectable
Not Selectable
NEMA Enclosure Rating
Not Rated
Lighting Technology
LED
Maximum Fixture Wattage
25 W
Lumen Selectable
Not Selectable

Description

1 ft, Lens Shape Curved, 4000K, 2,351 lm, 94 lm/W, Max. Fixture Wattage 25 W, LED, Sensor Type No Sensor, Mounting Style Ceiling, Wall, Linkable No, For Bulb Type Integrated LED, LED Replacement For Not Applicable, Bulb Included Integrated LED, Dimmable Yes, SWP1212
