This item is Discontinued.

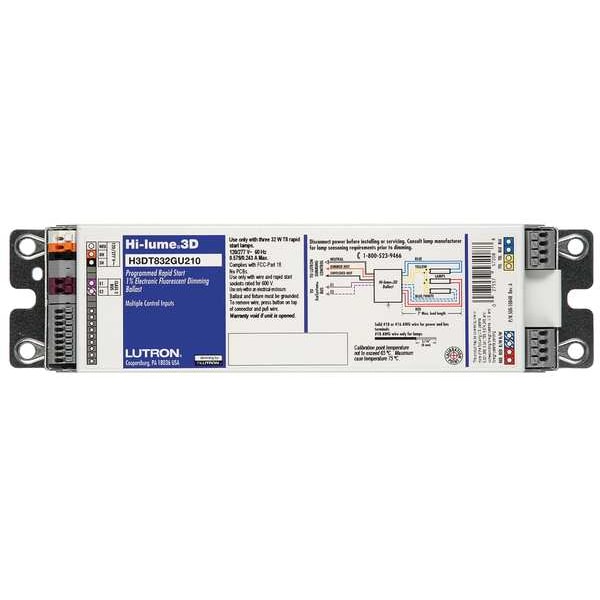

Lutron Dimming Ballast, 120-277 V, 48 In Lamp H3DT832GU210

Dimming Ballast, 120-277 V, 48 In Lamp (Discontinued)

  • Mfr # H3DT832GU210
  • Zoro # G1434413
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H3DT832GU210
Zoro #
G1434413
UPC #
027557774925
Country of Origin
Mexico

Dimensions

Width
2 5/16 in
Height
1 in
Length
9 1/2 in

Details

Ballast Lamp Type
T8
Sound Rating
Inaudible in 27dBa Ambient Environment
Ballast Dimming
Yes
Ballast Max. Lamp Watts
32
Ballast Dimming Type
Full Range Continuous Dimming
Power Factor
Greater than 0.95
Amps AC
0.58/0.28/0.24 A
Ballast Family
Hi Lume(R) 3D
Input Watts
68/66/66 W
Ballast Voltage
120-277
Number of F32T8 Lamps
2
Ballast Start Type
Programmed/Rapid
Item
Fluorescent Ballast
Dimming Range
100% to 0.7%
Standards
ANSI C62.41, ANSI C82.11, ANSI/ESD S20.20, CSA C22.2 No.74, FCC Part 18 EMI/RFI Emissions, ISO 9001.2000, UL935
Number of F32T8U Lamps
2
Total Harmonic Distortion
Less Than 10%
Ballast Lamp Watts
32
Ballast Type
Electronic
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Thermal Protection
Class P
Ballast Factor
1
Ballast Max. Number of Lamps
2
Min. Starting Temp.
50 Degrees F
Ballast Item
Electronic Ballast
Wiring Type
Parallel
Fixture Ballast Type
Electronic
Ballast Bulb Type
T8
Max. Bulb Watts
32 W
Operating Amps @ 120V
0.58 A
Starter Required
No
Sockets Included
No
Brand and Series
Hi Lume(R) 3D
Frequency
Greater Than 42kHz
Number of Bulbs Supported
2
Dimming Type
Full Continuous Dimming
Input Voltage
120 to 277V AC
CA Title 20 Compliant
No
Dimming Method
Proprietary
Dimming
Yes

Description

Hi Lume(R) 3D, Electronic, Fluorescent Ballast, Ballast Start Type Programmed/Rapid, Input Voltage 120 to 277V AC, Number of Bulbs Supported 2, Max. Bulb Watts 32 W, Ballast Bulb Type T8, Dimming Yes, Dimming Type Full Continuous Dimming, Dimming Method Proprietary, Dimming Range 100 Percent to 0.7 Percent, CA Title 20 Compliant No, Min. Starting Temp. 50 Degrees F

Restrictions

This item has been restricted from sale in the following states: CA
