  9. LED Driver, 24VDC, 120/277VAC, 170-370 mA

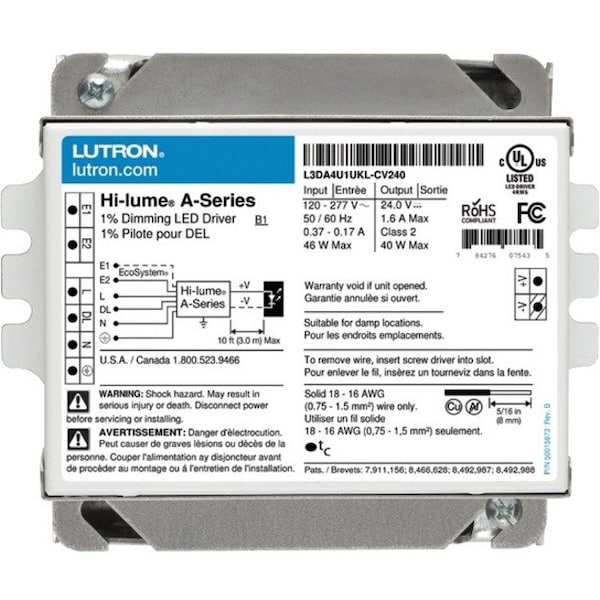

Lutron LED Driver, 24VDC, 120/277VAC, 170-370 mA L3DA4U1UKL-CV240 - main

LED Driver, 24VDC, 120/277VAC, 170-370 mA

  • Mfr # L3DA4U1UKL-CV240

  • Zoro # G9508326

product price: $212.99
/ea
Free Shipping & Returns

Key Features

Power Output
5 to 40W
Environmental Rating
Dry Location
Length
4 7/8 in
Width
4 in
Height
2 5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L3DA4U1UKL-CV240
Zoro #
G9508326
UPC #
784276075435
Country of Origin
Multiple

Dimensions

Length
4 7/8 in
Width
4 in
Height
2 5/8 in

Details

Item
LED Driver
Power Output
5 to 40W
Environmental Rating
Dry Location
For Use With
LED Lighting
Input Voltage
120 to 277V AC
Ballast Dimming
Yes
Ambient Temp. Range
32 Degrees to 104 Degrees F
Power Factor
0.95/0.99
Input Power
47 W
Input Current
170 to 370mA
Ballast Dimming Type
Full Range Continuous Dimming
Ballast Item
LED Driver
Output Current
1.60 A
Output Voltage
24V DC
Green Certification or Other Recognition
RoHS
Brand and Series
Hi-lume EcoSystem
Standards
ANSI C62.41 Category A, CAN ICES-005(A), FCC Part 15 Class A, ISO 9001.2008, RoHS Compliant, UL 8750 Listed
Total Harmonic Distortion
20 %
Dimming Method
Proprietary
Output Technology
Fixed
Case Form Factor
Compact
Ouput Constant
Constant Voltage
Dimming Range
100% to 1%
Driver Mounting Location
External from Fixture
Profile
Standard Profile
Max. Case Temp.
149 Degrees F
Intended LED Usage
Fixture Array
Dimming Type
Full Continuous Dimming
Driver Class
Class 2
Dimming
Yes
Number of Fixtures
1
Input Current - Minimum
170 mA
Power Output - Minimum
5 W
Power Output - Maximum
40 W
Input Current - Maximum
370 mA
Min. Ambient Temp.
32 Degrees F
Power Factor - Minimum
0.5
Max. Ambient Temp.
104 Degrees F

Description

Hi-lume EcoSystem, LED Driver, Intended LED Usage Fixture Array, Number of Bulbs Supported Not Applicable, 120 to 277V AC Input Voltage, 24V DC Output Voltage, 170 to 370mA Input Current, 1.60 A Output Current, 47 W Input Power, 5 to 40W Power Output, 4 7/8 in Length, 4 in Width, 2 5/8 in Height, Case Form Factor Compact, Standard Profile, Class 2
