  11. Vacancy Sensor, PIR, 900 sq ft, Ivory

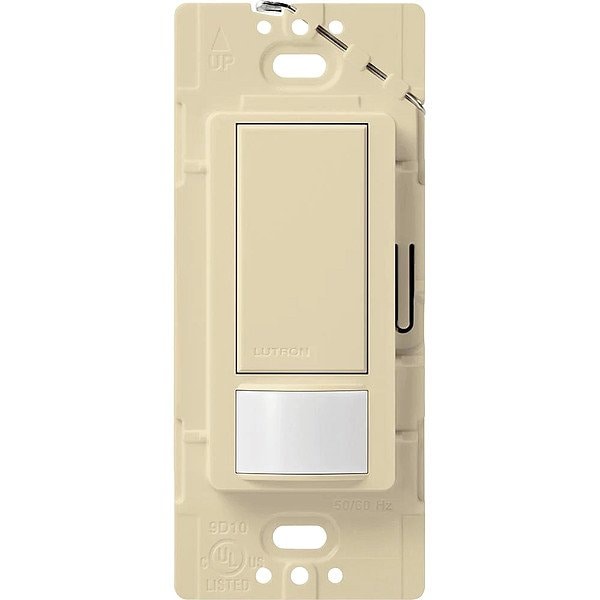

Lutron Vacancy Sensor, PIR, 900 sq ft, Ivory MS-VPS2-IV - main

Vacancy Sensor, PIR, 900 sq ft, Ivory

  • Mfr # MS-VPS2-IV

  • Zoro # G4524852

product price: $24.39
/ea

Key Features

Communication Method - Motion Sensing and Dimming
Hard Wired
Sensing Technology
Passive Infrared (PIR)
Installation Location - Motion Sensor
Wall Switch Box
Coverage at Suggested Mounting Height
900 sq ft
Operating Voltage - Motion Sensing and Dimming
120 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MS-VPS2-IV
Zoro #
G4524852
UPC #
027557982948
Country of Origin
China

Dimensions

Coverage at Suggested Mounting Height
900 sq ft
Suggested Mounting Height - Motion Sensor
4 ft
Maximum Mounting Height
4 ft
Overall Depth
0.31 in
Overall Width
2.94 in
Overall Height
4.69 in

Details

Item
Vacancy Sensor
Communication Method - Motion Sensing and Dimming
Hard Wired
Sensing Technology
Passive Infrared (PIR)
Installation Location - Motion Sensor
Wall Switch Box
Operating Voltage - Motion Sensing and Dimming
120 V AC
Color - Motion Sensing and Dimming
White
Time Delay - Motion Sensor
1 min, 15 min, 30 min, 5 min
Time Delay Adjustment Method - Motion Sensor
Adjustable
Coverage Angle - Motion Sensor
180 Degrees
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
Voltage
120V AC
Watts @ 120V
240
Standards
NOM, UL Listed
Color
Ivory
Timer Range
1, 5, 15, 30 min.
Includes
Wire Nuts
For Use With
Incandescent, Halogen, MLV, ELV, CFL, LED, Magnetic Fluorescent, and Electronic Fluorescent
Installation Type
Switch Box
Item - Motion Sensing and Dimming
Vacancy Sensor
Coverage
900 sq. ft.
Max. Capacity @ 120VAC
2A (CFL, ELV, Fluorescent, Halogen, Incandescent, LED, MLV)
Time Delay
Adjustable
Viewing Angle
180 Degrees
Sensor Type
Passive Infrared
Communication Method
Hard Wired
Number of Gangs
1
Wall Plate
Not Included
Neutral Required
No
Maximum Detection Distance
30 ft
Includes Wall Plate
Wall Plate Not Included
Maximum Coverage Area
900 sq ft
Minimum Time Delay
1 min
Minimum Operating Temperature
32 Degrees F
Maximum Time Delay
30 min
Minimum Coverage Area
400 sq ft
Series
Maestro
Includes Dimming Switch
Dimming Switch Not Included
Fan Rated
No
Nightlight
No
Dimming Type
No Dimming
Sensor Operation
Photocell, Vacancy
Installation Location
Wall
Rated Frequency
50/60 Hz
Maximum Operating Temperature
104 Degrees F
Time Delay Adjustment Method
Adaptive
Compatible with Series
Universal
Includes Motion Sensor
Yes
Number of Buttons
1
Load Rating @ 120V AC
2A
Manufacturer Warranty
5 yr
Coverage Angle
180 Degrees
Dimming Method
No Dimming
Operating Voltage
120V AC

Description

Vacancy Sensor, Number of Buttons 1, Sensor Operation Photocell, Vacancy, Compatible with Series Universal, Lighting Technology Fluorescent, Halogen, Incandescent, LED, Operating Voltage 120V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 2A, Communication Method Hard Wired, Maximum Coverage Area 900 sq ft, Neutral Required No, Color Ivory, Nightlight No, Dimming Method No Dimming, Dimming Type No Dimming, Includes Dimming Switch Dimming Switch Not Included
