  11. Vacancy Sensor, PIR, 900 sq ft, White

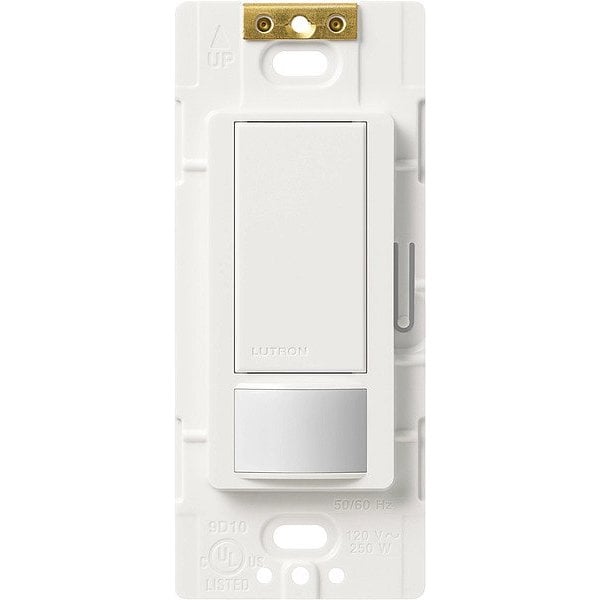

Lutron Vacancy Sensor, PIR, 900 sq ft, White MS-VPS5M-WH - main

Vacancy Sensor, PIR, 900 sq ft, White

  • Mfr # MS-VPS5M-WH

  • Zoro # G4733461

product price: $39.45
/ea

Key Features

Communication Method - Motion Sensing and Dimming
Hard Wired
Sensing Technology
Passive Infrared (PIR)
Installation Location - Motion Sensor
Wall Switch Box
Coverage at Suggested Mounting Height
900 sq ft
Operating Voltage - Motion Sensing and Dimming
120 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MS-VPS5M-WH
Zoro #
G4733461
UPC #
027557983846
Country of Origin
China

Dimensions

Coverage at Suggested Mounting Height
900 sq ft
Suggested Mounting Height - Motion Sensor
4 ft
Overall Depth
0.31 in
Overall Height
4.69 in
Overall Width
2.94 in
Maximum Mounting Height
4 ft

Details

Item
Vacancy Sensor
Communication Method - Motion Sensing and Dimming
Hard Wired
Sensing Technology
Passive Infrared (PIR)
Installation Location - Motion Sensor
Wall Switch Box
Operating Voltage - Motion Sensing and Dimming
120 V AC
Color - Motion Sensing and Dimming
White
Time Delay - Motion Sensor
1 min, 15 min, 30 min, 5 min
Time Delay Adjustment Method - Motion Sensor
Adjustable
Coverage Angle - Motion Sensor
180 Degrees
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
Standards
NOM, UL Listed
Color
White
Viewing Angle
180 Degrees
Installation Type
Switch Box
Timer Range
1, 5, 15, 30 min.
Max. Capacity @ 120VAC
3.0A (Fan Motor), 5A (CFL, ELV, Fluorescent, Halogen, Incandescent, LED, MLV)
Voltage
120V AC
Watts @ 120V
600
Time Delay
Adjustable
Item - Motion Sensing and Dimming
Vacancy Sensor
Sensor Type
Passive Infrared
Includes
Wire Nuts
For Use With
Incandescent, Halogen, MLV, ELV, CFL, LED, Magnetic Fluorescent, and Electronic Fluorescent
Coverage
900 sq. ft.
Communication Method
Hard Wired
Number of Gangs
1
Wall Plate
Not Included
Includes Motion Sensor
Yes
Compatible with Series
Universal
Maximum Time Delay
30 min
Minimum Operating Temperature
32 Degrees F
Sensor Operation
Photocell, Vacancy
Maximum Detection Distance
30 ft
Load Rating @ 120V AC
3.0A (Fan 120V), 5A (All Lighting Loads 120V Only)
Minimum Coverage Area
400 sq ft
Fan Rated
Yes
Nightlight
No
Series
Maestro
Includes Wall Plate
Wall Plate Not Included
Dimming Type
No Dimming
Minimum Time Delay
1 min
Neutral Required
No
Includes Dimming Switch
Dimming Switch Not Included
Installation Location
Wall
Maximum Operating Temperature
104 Degrees F
Rated Frequency
50/60 Hz
Time Delay Adjustment Method
Adaptive
Maximum Coverage Area
900 sq ft
Dimming Method
No Dimming
Manufacturer Warranty
5 yr
Number of Buttons
1
Coverage Angle
180 Degrees
Operating Voltage
120V AC

Description

Vacancy Sensor, Number of Buttons 1, Sensor Operation Photocell, Vacancy, Compatible with Series Universal, Lighting Technology Fluorescent, Halogen, Incandescent, LED, Operating Voltage 120V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 3.0A (Fan 120V), 5A (All Lighting Loads 120V Only), Communication Method Hard Wired, Maximum Coverage Area 900 sq ft, Neutral Required No, Color White, Nightlight No, Dimming Method No Dimming, Dimming Type No Dimming
