  11. Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, White, 900 sq ft, Fluorescent, Halogen, Incandescent, LED

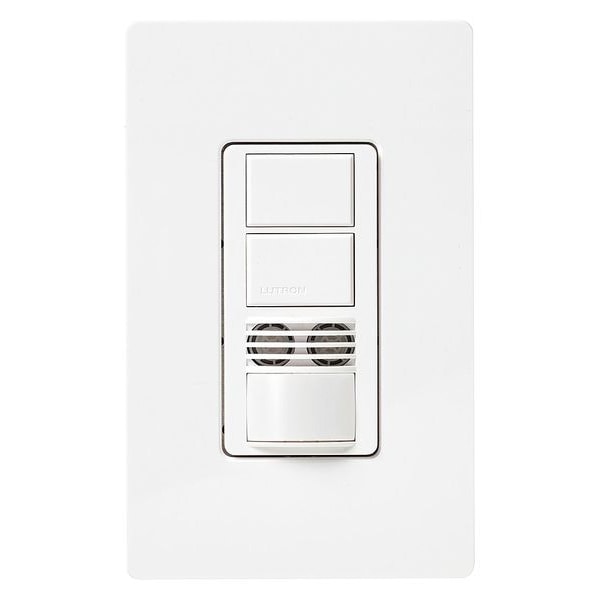

Lutron Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, White, 900 sq ft, Fluorescent, Halogen, Incandescent, LED MS-A202-WH - main

Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, White, 900 sq ft, Fluorescent, Halogen, Incandescent, LED

  • Mfr # MS-A202-WH

  • Zoro # G9753904

product price: $114.99
/ea
Free Shipping & Returns

Key Features

Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Time Delay Adjustment Method - Motion Sensor
Adjustable
Time Delay - Motion Sensor
1 min, 15 min, 30 min, 5 min
Max. Capacity @ 277VAC
6A (CFL, ELV, Fluorescent, Halogen, Incandescent, LED, MLV)
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MS-A202-WH
Zoro #
G9753904
UPC #
784276089777
Country of Origin
China

Dimensions

Overall Depth
0.31 in
Overall Width
2.94 in
Overall Height
4.69 in
Maximum Mounting Height
4 ft

Details

Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Time Delay Adjustment Method - Motion Sensor
Adjustable
Time Delay - Motion Sensor
1 min, 15 min, 30 min, 5 min
Max. Capacity @ 277VAC
6A (CFL, ELV, Fluorescent, Halogen, Incandescent, LED, MLV)
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
Description/Special Features
Dual-Circuit, Single Pole, XCT Technology for Major, Minor, Fine and Very Fine Motion Detection, Sensitivity Adjustment, Switches All Lighting Loads, Decora Style
Standards
NOM, Title 20/24 Compliant, ULR Listed
Max. Capacity @ 120VAC
4.4A (Fan Motor), 6A (CFL, ELV, Fluorescent, Halogen, Incandescent, LED, MLV)
Time Delay
Adjustable
For Use With
Incandescent, Halogen, MLV, ELV, CFL, LED, Magnetic Fluorescent and Electronic Fluorescent
Color
White
Coverage Angle - Motion Sensor
180 Degrees
Sensor Type
Passive Infrared/Ultrasonic
Item
Occupancy Sensor
Viewing Angle
180 Degrees
Communication Method
Hard Wired
Includes
Yellow Jumper Wire
Number of Gangs
1
Series
Maestro
Maximum Time Delay
30 min
Coverage Angle
180 Degrees
Includes Dimming Switch
Dimming Switch Not Included
Maximum Coverage Area
900 sq ft
Load Rating @ 277V AC
6A (Lighting)
Includes Wall Plate
Wall Plate Not Included
Sensor Operation
Occupancy, Vacancy
Nightlight
No
Maximum Operating Temperature
104 Degrees F
Fan Rated
Yes
Rated Frequency
50/60 Hz
Horsepower Rating
3/16 hp
Minimum Time Delay
1 min
Minimum Operating Temperature
32 Degrees F
Load Rating @ 120V AC
4.4A, Fan, 6A, Lighting
Includes Motion Sensor
Yes
Neutral Required
No
Coverage Type
Small Motion
Minimum Coverage Area
400 sq ft
Manufacturer Warranty
5 yr
Compatible with Series
Universal
Installation Location
Wall Mount
Number of Buttons
2
Operating Voltage
120 to 277V AC

Description

Occupancy Sensor, Number of Buttons 2, Sensor Operation Occupancy, Vacancy, Compatible with Series Universal, Lighting Technology Fluorescent, Halogen, Incandescent, LED, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR)/Ultrasonic, Load Rating @ 120V AC 4.4A (Fan), 6A (Lighting), Communication Method Hard Wired, Maximum Coverage Area 900 sq ft, Neutral Required No, Color White, Nightlight No, Dimming Method No Dimming, Dimming Type No Dimming
