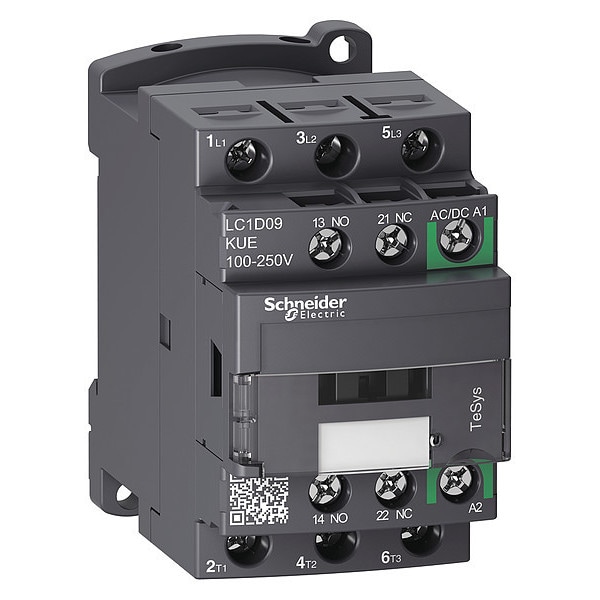

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D09KUE

  • Zoro # G6574878

product price:  $102.91
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Number of Poles
3
Full Load Amps-Inductive
9 A
Full Load Amps-Resistive
20 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LC1D09KUE
Zoro #
G6574878
UPC #
00785901965732
Country of Origin
France

Dimensions

Working Height
Up to 9842.52 ft
Overall Height
3.03 in
Overall Width
1.77 in
Overall Depth
3.39 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Number of Poles
3
Full Load Amps-Inductive
9 A
Full Load Amps-Resistive
20 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
Frame / Series / Class / Code
TeSys
HP @ 3 Phase - 575V
7 1/2 hp
Reversing
No
Enclosure NEMA Rating
No Enclosure
Series
TeSys Deca
Impulse Withstand Voltage
6 kV
Hold VA
1.6 VA
Non-Overlap Time
1.5 ms
Includes Protective Cover
Yes
Application
Motor Control, Resistive Load
Tightening Torque
1.7 Nm
Rated Breaking Capacity
250 A @ 440V
Rated Insulation Volts
690V
Overvoltage Category
CAT III
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Operating Speed
3600 cycles per hr
Max. Operating Watts
2.2 kW (at 220 to 230V AC 50 Hz AC-3), 4 kW (at 380 to 400V AC 50 Hz AC-3), 4 kW (at 415V AC 50 Hz AC-3), 4 kW (at 440V AC 50 Hz AC-3), 5.5 kW (at 500V AC 50 Hz AC-3), 5.5 kW (at 660 to 690V AC 50 Hz AC-3), 2.2 kW (at 220 to 230V AC 50 Hz AC-3e), 4 kW (at 380 to 400V AC 50 Hz AC-3e), 4 kW (at 415V AC 50 Hz AC-3e), 4 kW (at 440V AC 50 Hz AC-3e), 5.5 kW (at 500V AC 50 Hz AC-3e), 5.5 kW (at 660 to 690V AC 50 Hz AC-3e)
Fuse Amps
10 A (Signalling Circuit), 25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Features
Built-In Bi-Directional Peak Limiting
Switching Voltage
17 V (Signalling Circuit)
Switching Current
5 mA (Signalling Circuit)
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Electrical Durability
2.4 Mcycles (8 A, AC-3, Less than 440 V); 0.6 Mcycles (25 A, AC-1, Less than 440 V); 2.4 Mcycles (8 A, AC-3e, Less than 440 V)
Watts Loss
1.1W
Operating Time
45 to 55 ms (Closing), 20 to 90 ms (Opening)
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
Signalling Circuit Frequency
25 to 400 Hz
IP Rating
IP20
Mechanical Durability
15 Mcycles
Environmental Attributes
Mercury Free, Pollution Degree 3
Rated Short-Time Withstand Current
100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit)
Fire Rating
UL 94 V1
Inrush VA
25 VA
Impedance
2.5 mOhm
Net Weight
0.368 kg
Rated Making Capacity
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Horsepower @ Single Phase - 240V AC
1 hp
Electrical Operating Durability
2,400,000, 600,000
Horsepower @ Three Phase - 480V AC
5 hp
Full Load Current - Inductive
9:00 AM
Horsepower @ Three Phase - 600V AC
7 1/2 hp
Number of Normally Open Main Contacts
3
Includes Auxiliary Contacts
Yes
Embedded Surge Suppressor
No
Resistance Properties
Fire Resistant, Insulation Resistant
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
Maximum Voltage Rating
690V AC
Horsepower @ Single Phase - 120V AC
1/3 hp
Mounting Style
DIN Rail, Plate
NEMA Enclosure Rating
No Enclosure
Full Load Current - Resistive
20 A
Horsepower @ Three Phase - 240V AC
2 hp
Contactor Style
IEC
Phase
Three
Frequency
50/60 Hz
Mechanical Operating Durability
15,000,000
Horsepower @ Three Phase - 208V AC
2 hp
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit)

Description

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, electromagnetically operated switch rated for operation within specified motor control and resistive-load application parameters. It uses a coil voltage range of 100–250 V AC/DC and features two auxiliary contacts configured as 1NO/1NC. The device uses screw clamp terminals and is part of the TeSys Deca family, rated for operation up to 690 V AC within specified conditions, with a 50/60 Hz operating frequency.

Key features

  • Poles/contacts: 3 main poles; 3 normally open main contacts; 2 auxiliary contacts (1NO/1NC)
  • Coil voltage: 100–250 V AC/DC
  • Reversing: Non-Reversing
  • Electrical ratings: rated for operation up to 690 V AC within specified conditions; 50/60 Hz; Rated making capacity up to 250 A at 440 V under standard test conditions; Full load currents of up to 20 A resistive and 9 A inductive loads within specified ratings
  • Mechanical/thermal: Mechanical durability 15 Mcycles; Electrical operating durability 2,400,000 cycles
  • Physical/dimensions: Width 1.77 in; Height 3.03 in; Depth 3.39 in; Net weight 0.368 kg; IP20; No enclosure
  • Mounting/installation: Mounting style DIN Rail, Plate; Mounts on Plate, Rail; Screw Clamp terminals
  • Series/standards: TeSys Deca; Standards include UL Listed and EN/IEC 60947-4-1, EN/IEC 60947-5-1
  • Other features: Includes protective cover; Does not include an integrated surge suppression device; Fire rating: UL 94 V1
  • Phase/frequency: Three-phase; 50/60 Hz
  • Temperature ratings: Rated for operation within the specified temperature ranges
