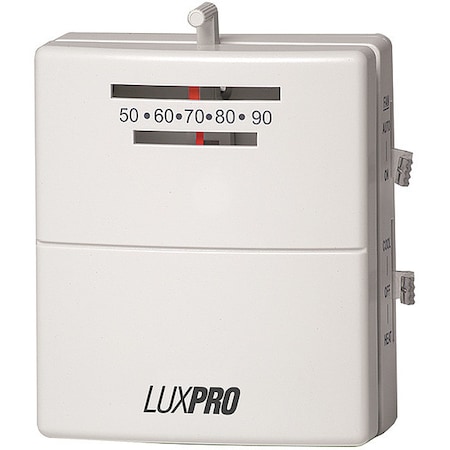

Lux Heating/Cooling Mechanical Thermostat, 1 H, 1 C, Wall Mount, Hardwired, 24VAC PSM40SA

Heating/Cooling Mechanical Thermostat, 1 H, 1 C, Wall Mount, Hardwired, 24VAC (Discontinued)

  • Mfr # PSM40SA
  • Zoro # G7824139
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PSM40SA
Zoro #
G7824139
UPC #
021079980406
Country of Origin
China

Dimensions

Height
3 1/2"
Width
3"
Depth
1 3/8 in
Overall Width
3 in
Overall Height
3 1/2 in
Overall Depth
1 3/8 in

Details

Item
Heating/Cooling Mechanical Thermostat
Voltage
24VAC
Stages Heat
1
Mounting Location
Wall
Color
White
Control Range
45 Degrees to 90 Degrees F
System Switching
Heat-Cool-Off
Stages Cool
1
Dual Transformer Compatible
No
Power Method
Hardwired
750mV Compatible
Yes
Fan Switching
Auto-on
Mounting
Vertical
Automatic Changeover
No
For Use With
SD-CT
Terminal Designations
R,C,W
Features
Mercury Free, Clean Attractive Design, Snap Action Mechanism, Adjustable Heat Anticipator
Control Type
Slide Switch
Mounting Direction
Vertical
Thermostat Type
Low Voltage
Temperature Sensitivity
+/-1 Degrees F
System Settings
Cool-Heat-Off
System/Fan Settings
Cool-Heat-Off/Auto-On
Fan Settings
Auto, On
Contact Type
Snap Action
Operating Temperature Range
+32 Degrees to +95 Degrees F
Changeover Type
Manual
Application
Heat and Cool
Compatible System Type
Hydronic Air Handler, Single-Stage Heat Pump
Millivolt Compatible
Yes
Operating Humidity Range
20% to 90 %
Temperature Control Range
45 Degrees to 90 Degrees F, 50 Degrees to 95 Degrees F
Electrical Connection Type
Hardwired
Amperage
0.15 to 1.2 A

Description

Low Voltage Thermostat, Heat and Cool, Manual, Compatible System Type Hydronic Air Handler, Single-Stage Heat Pump, Slide Switch, Dual Transformer Compatible No, Fan Settings Auto, On, Key Features Mercury Free, Mounting Direction Vertical, Overall Depth 1 3/8 in, Overall Height 3 1/2 in, Overall Width 3 in, System Settings Cool-Heat-Off
