  6. Collet Chuck, 1-1/4in, VMK8, Project 122mm

This item is Discontinued.

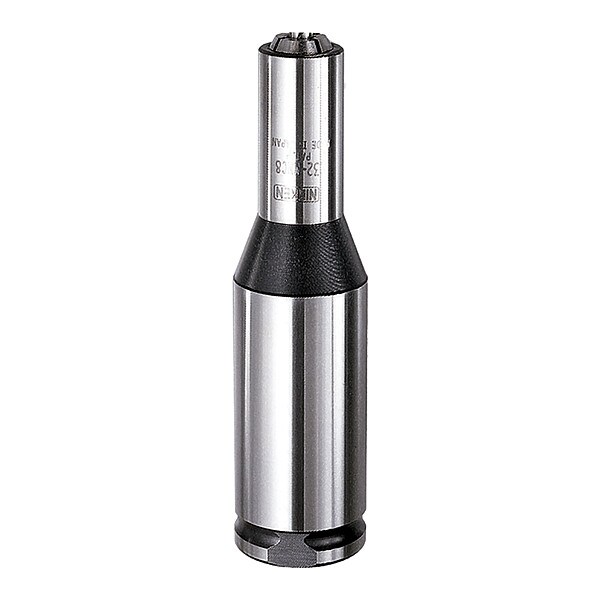

Lyndex-Nikken Collet Chuck, 1-1/4in, VMK8, Project 122mm K1.1/4-MMC8C-122

Collet Chuck, 1-1/4in, VMK8, Project 122mm (Discontinued)

  • Mfr # K1.1/4-MMC8C-122
  • Zoro # G0538520
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
K1.1/4-MMC8C-122
Zoro #
G0538520
UPC #
-
Country of Origin
Japan

Dimensions

Overall Length
4 51/64 in
Nose Dia.
0.7870 in
Compatible Collet Size - Minimum
0.08 in
Compatible Collet Size - Maximum
0.39 in
Shank Diameter
1.25 in
Outside Diameter - Maximum
0.79 in
Nose Diameter
0.79 in

Details

Item
Collet Chuck
Collet Series
VMK8
For Use With
MPK/VMK Collets
Min. Collet Capacity
0.0790 in
Max. Collet Capacity
0.314 in
Coolant Through
Yes
Balanceable
No
Pre-Balanced
Yes
Material
High Speed Steel
Projection
4.92 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
Torque - Maximum
15 ft-lb
Balance Rating
G2.5
Coolant Supply
Coolant Through
Compatible Collet Series
MMC8
T.I.R. Tolerance
0 in
Shank Type
Straight
Compatible Collet Wrench
ALLEN6 Wrench
Speed - Maximum
30,000 RPM
Includes Nut
Nut Not Included
Product Type
Straight Shank Collet Chuck

Description

Collet Chuck, Min. Collet Capacity 0.0790 in, Max. Collet Capacity 0.314 in, Projection 4.92 in, VMK8
