  11. Collet Chuck, BT40, ER25, Project 2.250in

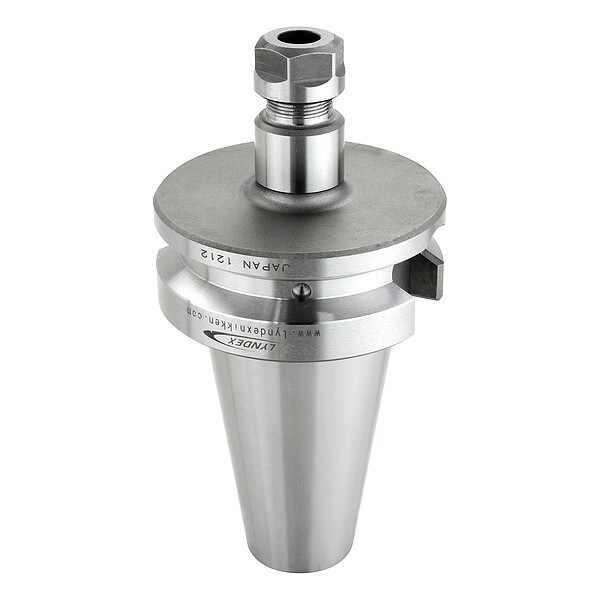

Lyndex-Nikken Collet Chuck, BT40, ER25, Project 2.250in B4007-0011-2.50 - main

Collet Chuck, BT40, ER25, Project 2.250in

  • Mfr # B4007-0011-2.50

  • Zoro # G0543999

product price: $221.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER11
For Use With
ER Collets
Material
Molybdenum
Projection
2.36 in
Taper Size
BT40
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
B4007-0011-2.50
Zoro #
G0543999
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Taper Size
BT40
Nut Dia.
0.750 in
Overall Length
5 5/64 in
Nose Dia.
3/4 in
Compatible Collet Size - Minimum
0.02 in
Nut Diameter
0.75 in
Outside Diameter - Maximum
0.75 in
Compatible Collet Size - Maximum
0.28 in
Shank Thread Size
M14

Details

Item
Collet Chuck
Collet Series
ER11
For Use With
ER Collets
Material
Molybdenum
Projection
2.36 in
Coolant Through
Yes
Min. Collet Capacity
0.0190 in
Max. Collet Capacity
0.275 in
Balanceable
No
Pre-Balanced
Yes
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
Speed - Maximum
23,000 RPM
Compatible Nut Model Number
E11-NUT
Product Type
BT Collet Chuck
Includes Nut
Nut Included
Shank Type
Taper
Coolant Supply
Coolant Through
Compatible Collet Wrench
011-HEX
Torque - Maximum
18 ft-lb
Number of Coolant Ports
4
Finish
Nickel Chrome
Compatible Collet Series
ER11
T.I.R. Tolerance
0 in
Includes Coolant Screws
Coolant Screws Included

Description

Collet Chuck, Taper Size BT40, Min. Collet Capacity 0.0190 in, Max. Collet Capacity 0.275 in, Projection 2.36 in, ER11
