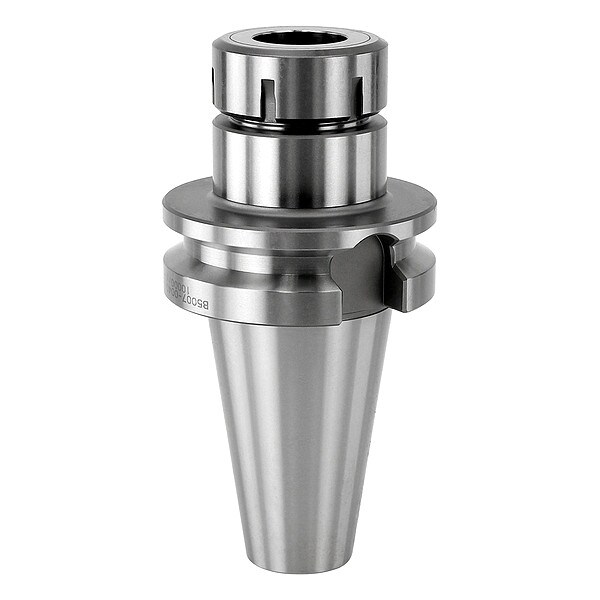

Collet Chuck, BT50,100TG, Project 3.500in

  • Mfr # B5007-0040-4.00
  • Zoro # G0543667
product price:
$
401.99
/ea
Free Shipping & Returns

Key Features

Collet Series
TG100
For Use With
ER Collets
Min. Collet Capacity
0.1180 in
Coolant Through
Yes
Taper Size
BT50
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
B5007-0040-4.00
Zoro #
G0543667
UPC #
-
Country of Origin
Taiwan, Province of China
Item
Collet Chuck
Collet Series
TG100
For Use With
ER Collets
Min. Collet Capacity
0.1180 in
Coolant Through
Yes
Pre-Balanced
Yes
Balanceable
No
Material
Molybdenum
Projection
4 in
Max. Collet Capacity
1.023 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
T.I.R. Tolerance
0 in
Coolant Supply
Coolant Through
Includes Coolant Screws
Coolant Screws Included
Compatible Collet Series
ER40
Number of Coolant Ports
4
Speed - Maximum
23,000 RPM
Torque - Maximum
125 ft-lb
Finish
Nickel Chrome
Compatible Nut Model Number
E40-NUT
Compatible Collet Wrench
040-SPAN
Includes Nut
Nut Included
Product Type
BT Collet Chuck
Shank Type
Taper
Shell Material
Molybdenum

Dimensions

Taper Size
BT50
Nut Dia.
2.500 in
Overall Length
8 1/64 in
Nose Dia.
2 1/2 in
Outside Diameter - Maximum
2.44 in
Nut Diameter
2.5 in
Compatible Collet Size - Minimum
0.12 in
Compatible Collet Size - Maximum
1.02 in
Shank Thread Size
M50
Wire Rope Length
8 1/64 in
Length
8 1/64 in

Description

Collet Chuck, Taper Size BT50, Min. Collet Capacity 0.1180 in, Max. Collet Capacity 1.023 in, Projection 4 in, TG100
