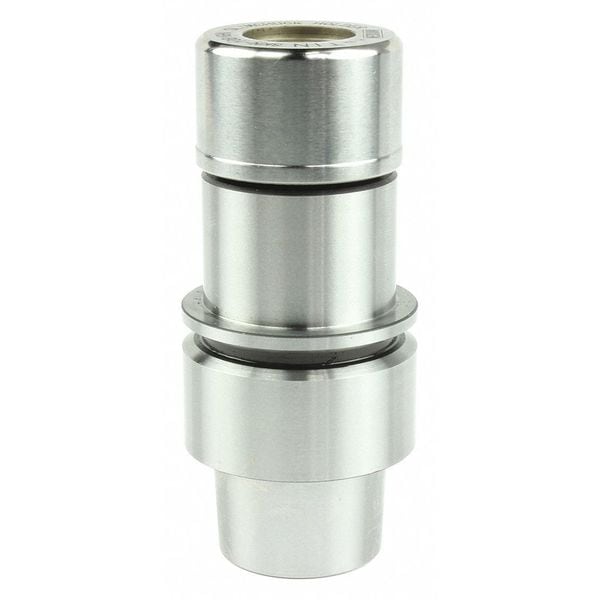

Lyndex-Nikken Collet Chuck, HSK40, SK6, Project 60mm HSK40E-SK10-60P - main

Collet Chuck, HSK40, SK6, Project 60mm

  • Mfr # HSK40E-SK10-60P

  • Zoro # G0539126

product price: $565.28
/ea
Free Shipping & Returns

Key Features

Collet Series
SK10
For Use With
SK Collets
Max. Collet Capacity
0.393 in
Taper Size
HSK40E
Projection
2.36 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HSK40E-SK10-60P
Zoro #
G0539126
UPC #
-
Country of Origin
Japan

Dimensions

Taper Size
HSK40E
Nut Dia.
1.083 in
Overall Length
3 9/64 in
Nose Dia.
1.0830 in
Nut Diameter
1.08 in
Compatible Collet Size - Minimum
0.07 in
Compatible Collet Size - Maximum
0.39 in

Details

Item
Collet Chuck
Collet Series
SK10
For Use With
SK Collets
Max. Collet Capacity
0.393 in
Projection
2.36 in
Coolant Through
Yes
Balanceable
No
Material
High Speed Steel
Min. Collet Capacity
0.0690 in
Pre-Balanced
Yes
Coolant Fed
Coolant Through
Features
Pre-Balanced
Compatible Collet Wrench
GH10
Compatible Collet Series
SK10
Includes Nut
Nut Included
Product Type
HSK Collet Chuck
T.I.R. Tolerance
0 in
Operating Pressure - Maximum
1,200 psi
Finish
Heat Treated
Shank Type
Taper
Includes Coolant Screws
Coolant Screws Not Included
Coolant Supply
Coolant Through
Speed - Maximum
30,000 RPM

Description

Collet Chuck, Taper Size HSK40E, Min. Collet Capacity 0.0690 in, Max. Collet Capacity 0.393 in, Projection 2.36 in, SK10
