  11. Collet Chuck, HSK63, ER20, Project 3in

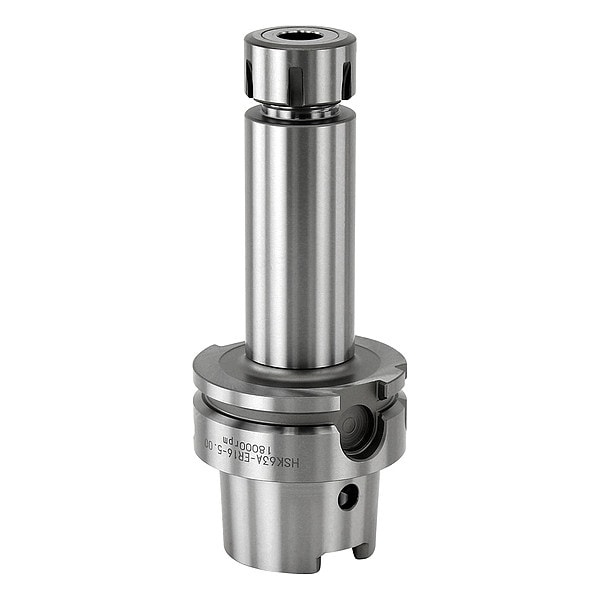

Lyndex-Nikken Collet Chuck, HSK63, ER20, Project 3in HSK63A-ER16-5.00 - main

Collet Chuck, HSK63, ER20, Project 3in

  • Mfr # HSK63A-ER16-5.00

  • Zoro # G0538959

product price: $465.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER20
For Use With
ER Collets
Projection
5 in
Balanceable
No
Nut Dia.
1.380 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HSK63A-ER16-5.00
Zoro #
G0538959
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Nut Dia.
1.380 in
Taper Size
HSK63
Overall Length
6 17/64 in
Nose Dia.
1.2600 in
Compatible Collet Size - Minimum
0.02 in
Outside Diameter - Maximum
1.26 in
Compatible Collet Size - Maximum
0.39 in
Nut Diameter
1.26 in
Shank Thread Size
M22

Details

Item
Collet Chuck
Collet Series
ER20
For Use With
ER Collets
Projection
5 in
Balanceable
No
Material
Molybdenum
Pre-Balanced
Yes
Min. Collet Capacity
0.0190 in
Coolant Through
Yes
Max. Collet Capacity
0.406 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
Shank Type
Taper
T.I.R. Tolerance
0 in
Coolant Supply
Coolant Through
Includes Nut
Nut Included
Compatible Collet Series
ER16
Product Type
HSK Collet Chuck
Compatible Collet Wrench
016-SPAN
Includes Coolant Screws
Coolant Screws Included
Finish
Nickel Chrome
Torque - Maximum
40 ft-lb
Speed - Maximum
25,000 RPM

Description

Collet Chuck, Taper Size HSK63, Min. Collet Capacity 0.0190 in, Max. Collet Capacity 0.406 in, Projection 5 in, ER20
