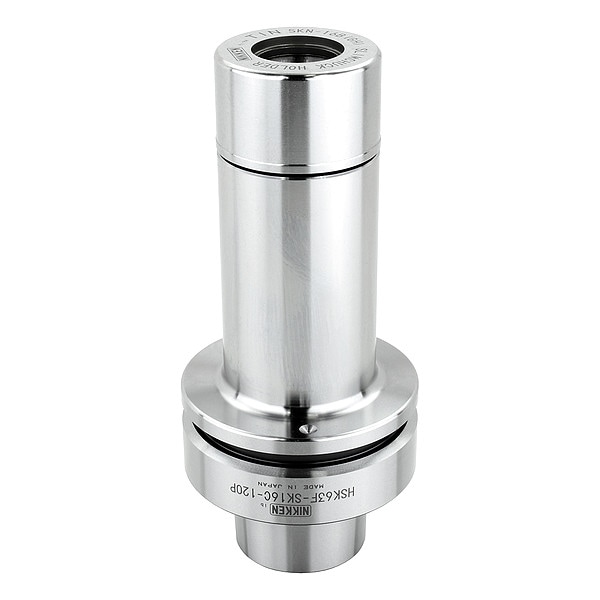

Collet Chuck, HSK63F, SK16, Project 120mm

  • Mfr # HSK63F-SK16C-120P

  • Zoro # G0538581

product price:
$
650.99
/ea
Free Shipping & Returns

Key Features

Collet Series
SK16
For Use With
SK Collets
Taper Size
HSK63
Nut Dia.
1.575 in
Projection
4.72 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HSK63F-SK16C-120P
Zoro #
G0538581
UPC #
-
Country of Origin
Japan

Dimensions

Taper Size
HSK63
Nut Dia.
1.575 in
Overall Length
5 45/64 in
Nose Dia.
1.5750 in
Compatible Collet Size - Maximum
0.63 in
Compatible Collet Size - Minimum
0.11 in
Outside Diameter - Maximum
1.58 in
Nut Diameter
1.58 in
Wire Rope Length
5 45/64 in
Length
5 45/64 in

Details

Item
Collet Chuck
Collet Series
SK16
For Use With
SK Collets
Projection
4.72 in
Material
High Speed Steel
Max. Collet Capacity
0.629 in
Pre-Balanced
Yes
Coolant Through
Yes
Min. Collet Capacity
0.1080 in
Balanceable
No
Coolant Fed
Coolant Through
Features
Pre-Balanced
Compatible Collet Series
SK16
Product Type
HSK Collet Chuck
Shank Type
Taper
T.I.R. Tolerance
0 in
Torque - Maximum
55 ft-lb
Balance Rating
G2.5
Speed - Maximum
30,000 RPM
Includes Coolant Screws
Coolant Screws Not Included
Compatible Backup Screw Model Number
SKG16-10HG
Coolant Supply
Coolant Through
Finish
Heat Treated
Operating Pressure - Maximum
1,200 psi
Compatible Collet Wrench
GH16
Includes Nut
Nut Included

Description

Collet Chuck, Taper Size HSK63, Min. Collet Capacity 0.1080 in, Max. Collet Capacity 0.629 in, Projection 4.72 in, SK16
