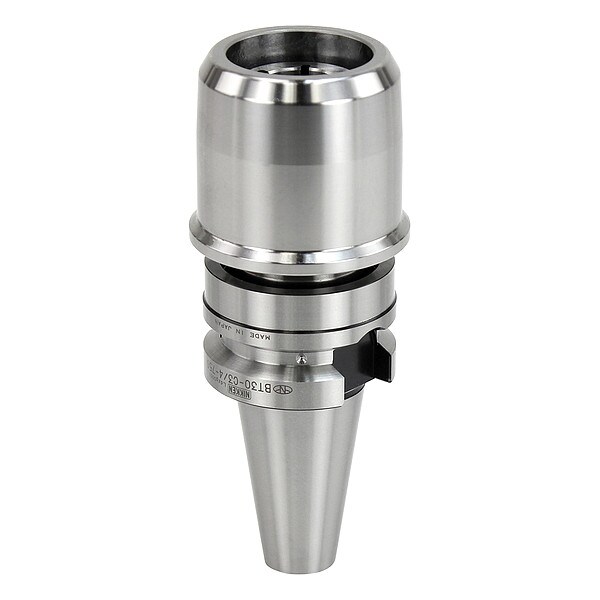

HS Milling Chck Holder, BT30, Nose 1.890in
Mfr # BT30-C3/4-75G
Zoro # G0543527
product price: $685.99
/ea
Free Shipping & Returns
Key Features
Projection
3.031 in
Collet Series
KM3/4
Taper Size
BT40
Coolant Through
Yes
Bore Depth
2.0800 in to 3.1500 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
BT30-C3/4-75G
Zoro #
G0543527
UPC #
-
Country of Origin
Japan
Dimensions
Taper Size
BT40
Nose Dia.
1.8900 in
Bore Depth
2.0800 in to 3.1500 in
Hole Dia.
3/4 in
Nose Diameter
2.72 in
Details
Projection
3.031 in
Collet Series
KM3/4
Item
Milling Chuck
Coolant Through
Yes
Coolant Fed
Coolant Through
TIR Max.
Less Than 0.0002 in
Features
140% More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
Clamping Range
1/8 in to 3/4 in
Material
Molybdenum 4340
Product Type
Milling Chuck
Coolant Supply
Coolant Through
Contact Type
Dual Contact
Speed - Maximum
8,000 RPM
Compatible Spanner Wrench Manufacturer Model Number
9CKR; 9HC32; CCKL32
Measurement System
Inch
Includes Spanner Wrench
Spanner Wrench Not Included
Compatible Reducing Sleeve
CCK1-1/4; CCNK1-1/4; KM1-1/4
T.I.R. Tolerance
0.0002 in
Description
Milling Chuck, Taper Size BT40, Hole Dia. 3/4 in, Nose Dia. 1.8900 in, Collet Series KM3/4, Projection 3.031 in, Coolant Fed Coolant Through, Bore Depth 2.0800 in to 3.1500 in, Clamping Range 1/8 in to 3/4 in, Features 140 Percent More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
