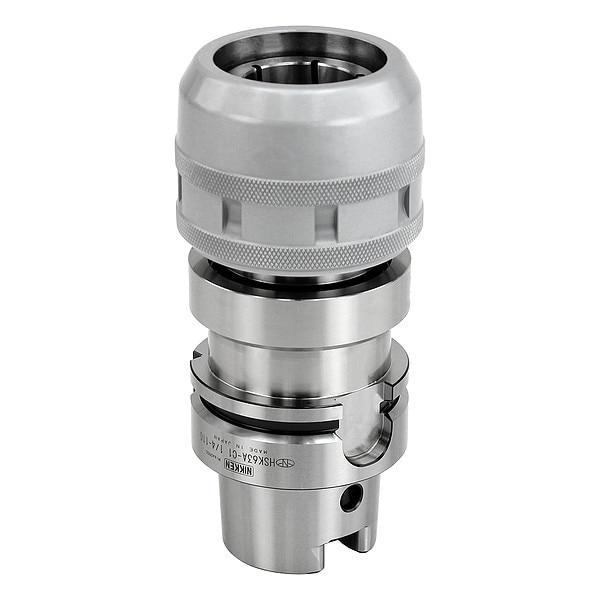

Mill Chuck Holdr, Nose 2.717in, 4.33in Prj
Mfr # HSK63A-C1.1/4-110
Zoro # G0539071
product price:Â
$
767.99
/ea
Free Shipping & Returns
Key Features
Taper Size
H63
Nose Dia.
2.7100 in
Bore Depth
2.5300 in to 3.2680 in
Hole Dia.
1-1/4 in
Coolant Through
Yes
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HSK63A-C1.1/4-110
- Zoro #
- G0539071
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Taper Size
- H63
- Nose Dia.
- 2.7100 in
- Bore Depth
- 2.5300 in to 3.2680 in
- Hole Dia.
- 1-1/4 in
- Nose Diameter
- 2.05 in
Details
- Item
- Milling Chuck
- Coolant Through
- Yes
- Projection
- 2.677 in
- Collet Series
- KM1.1/4
- Coolant Fed
- Coolant Through
- Clamping Range
- 3/16 in to 1-1/4 in
- Features
- 140% More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
- TIR Max.
- Less Than 0.0002 in
- Compatible Spanner Wrench Manufacturer Model Number
- 9CKR; 9HC22; CCKL20
- Product Type
- Milling Chuck
- Includes Spanner Wrench
- Spanner Wrench Not Included
- Material
- Molybdenum 4340
- Coolant Supply
- Coolant Through
- Compatible Reducing Sleeve
- CCK3/4; CCNK3/4; KM3/4
- Measurement System
- Inch
- T.I.R. Tolerance
- 0.0002 in
- Speed - Maximum
- 8,000 RPM
Description
Milling Chuck, Taper Size H63, Hole Dia. 1-1/4 in, Nose Dia. 2.7100 in, Collet Series KM1.1/4, Projection 2.677 in, Coolant Fed Coolant Through, Bore Depth 2.5300 in to 3.2680 in, Clamping Range 3/16 in to 1-1/4 in, Features 140 Percent More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
