Shop LYNDEX-NIKKEN

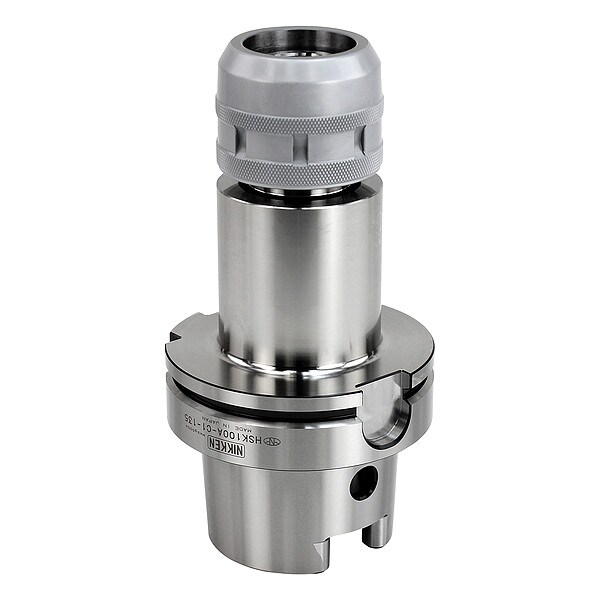

Milling Chuck Holder, HSK100, Nose 2.362in

  • Mfr # HSK100A-C1-135
  • Zoro # G0539500

product price:
$
977.99
/ea
Free Shipping & Returns

Key Features

Hole Dia.
1 in
Coolant Through
Yes
Bore Depth
3.15 in
Nose Dia.
2.3600 in
Projection
3.149 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HSK100A-C1-135
Zoro #
G0539500
UPC #
-
Country of Origin
Japan
Coolant Through
Yes
Item
Milling Chuck
Projection
3.149 in
Collet Series
KM1
Coolant Fed
Coolant Through
Clamping Range
1/8 in to 1 in
TIR Max.
Less Than 0.0002 in
Features
140% More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
Product Type
Milling Chuck
Measurement System
Inch
Material
Molybdenum 4340
Compatible Reducing Sleeve
CCK1; CCNK1; KM1
Coolant Supply
Coolant Through
Speed - Maximum
6,000 RPM
T.I.R. Tolerance
0.0002 in
Compatible Spanner Wrench Manufacturer Model Number
9CKR; 9HC25; CCKL25
Includes Spanner Wrench
Spanner Wrench Not Included
Shell Material
Molybdenum 4340
Traction Material
Molybdenum 4340

Dimensions

Hole Dia.
1 in
Bore Depth
3.15 in
Nose Dia.
2.3600 in
Taper Size
H63
Nose Diameter
2.36 in

Description

Milling Chuck, Taper Size H63, Hole Dia. 1 in, Nose Dia. 2.3600 in, Collet Series KM1, Projection 3.149 in, Coolant Fed Coolant Through, Bore Depth 3.15 in, Clamping Range 1/8 in to 1 in, Features 140 Percent More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
