Shop LYNDEX-NIKKEN

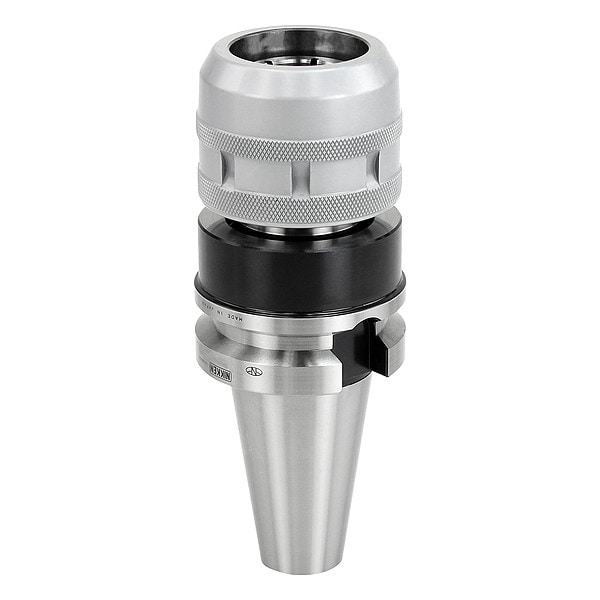

Milling Chuck Holder, BT40, 2.530-4.134in

  • Mfr # BT40-C1.1/4-120

  • Zoro # G0543280

product price:
$
667.99
/ea
Free Shipping & Returns

Key Features

Collet Series
KM1.1/4
Projection
3.149 in
Bore Depth
2.5300 in to 4.1300 in
Hole Dia.
1-1/4 in
Coolant Through
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BT40-C1.1/4-120
Zoro #
G0543280
UPC #
-
Country of Origin
Japan

Dimensions

Nose Dia.
2.7100 in
Bore Depth
2.5300 in to 4.1300 in
Hole Dia.
1-1/4 in
Taper Size
BT40
Nose Diameter
2.05 in

Details

Collet Series
KM1.1/4
Projection
3.149 in
Item
Milling Chuck
Coolant Through
Yes
Coolant Fed
Coolant Through
Clamping Range
3/16 in to 1-1/4 in
TIR Max.
Less Than 0.0002 in
Features
140% More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
Product Type
Milling Chuck
Speed - Maximum
8,000 RPM
Material
Molybdenum 4340
Compatible Spanner Wrench Manufacturer Model Number
9CKR; 9HC22; CCKL20
Includes Spanner Wrench
Spanner Wrench Not Included
Measurement System
Inch
T.I.R. Tolerance
0.0002 in
Coolant Supply
Coolant Through
Contact Type
Dual Contact
Compatible Reducing Sleeve
CCK3/4; CCNK3/4; KM3/4

Description

Milling Chuck, Taper Size BT40, Hole Dia. 1-1/4 in, Nose Dia. 2.7100 in, Collet Series KM1.1/4, Projection 3.149 in, Coolant Fed Coolant Through, Bore Depth 2.5300 in to 4.1300 in, Clamping Range 3/16 in to 1-1/4 in, Features 140 Percent More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
